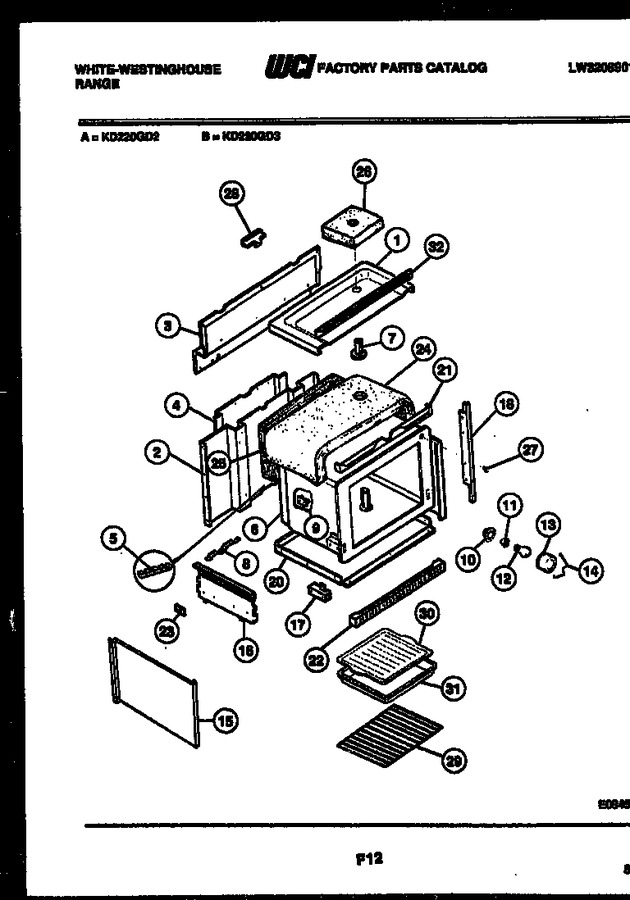

02 - Door Parts
03 - Cooktop And Broiler Parts
04 - Control Panel
05 - Body Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051553 | Panel-subtop |
|
- | |||||
| 2 | 3204647 | Back-range |
|
- | |||||
| 3 | 08008689 | Back-range Upper |
|
- | |||||
| 4 | 3204650 | Cover, Wire |
|
- | |||||
| 5 | 3051098 | Terminal-block |
|
- | |||||
| 7 | 3051520 | Tube-vent |
|
- | |||||
| 8 | 3203574 | Plate-mtg |
|
- | |||||
| 9 | 3051552 | Brkt, Thermobulb |
|
- | |||||
| 10 | 3204816 | Cup-oven Light |
|
- | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 14 | 08011087 | Retainer - Lens |
|
- | |||||
| 15 | 3051526 | Retainer-insul. (2) |
|
- | |||||
| 16 | 08015935 | Panel-side (2) |
|
- | |||||
| 17 | 3051527 | Brkt, Supt. Rh (2) |
|
- | |||||
| 18 | 08003334 | Trim, Ovn Frnt (2) |
|
- | |||||
| 20 | 3205112 | Retainr, Insul Btm |
|
- | |||||
| 21 | 08008693 | Bracket-cooktop |
|
- | |||||
| 22 | 08012249 | Grill-bottom |
|
- | |||||
| 23 | 3051827 | Plate, Filler (2) |
|
- | |||||
| 24 | 3051521 | Insulation Wrap |
|
- | |||||
| 25 | 3051522 | Insulation-back |
|
- | |||||
| 26 | 3051523 | Insulation, Vent Tube |
|
- | |||||
| 27 | 08015948 | Sw. Ov. Lt. |
|
- | |||||
| 28 | 3051800 | Brkt, Hng Support |
|
- | |||||
| 29 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 30 | 3051562 | Grill-broiler |
|
- | |||||
| 31 | 3200723 | Pan, Broiler |
|
- | |||||
| 32 | K5113502 | Shield, Wire |
|
- | |||||
| 17A | 3051528 | Brkt, Supt Lh (2) |
|
- |
