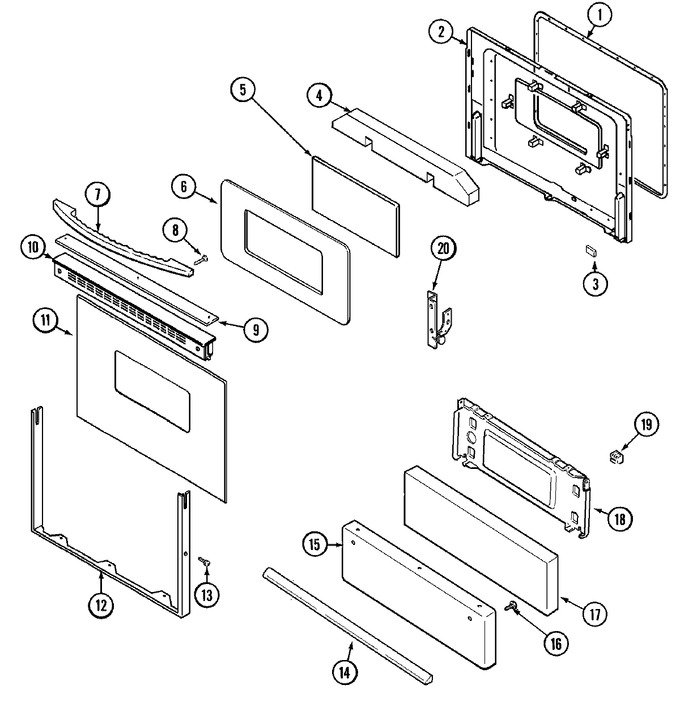

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
2	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
2	74003248		Lining, Door	10	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
3	WP179051		Screw   (Replaces: 74002059)	10		Immediately	$ 7.16
4	74002458		Insulation, Door	10	Appelez-nous	-
5	74002459		Glass, Door (inner)	10	Appelez-nous	-
6	7101P209-60		Screw	10	Appelez-nous	-
6	74002461		Baffle, Door	10	Appelez-nous	-
7	74003619		Handle, Door (alm)	10	Appelez-nous	-
8	WP74009541		Screw (1/2``-alm)   (Replaces: 7101P374-60)	10			$ 6.26
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74002064		Trim, Top (alm)	10	Appelez-nous	-
11	74001294		Glass, Outer Door (alm)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	74001287		Frame, Door (alm)	10	Appelez-nous	-
13	WP74009541		Screw (1/2``-alm)   (Replaces: 7101P374-60)	10			$ 6.26
14	2411F003-74		Handle, Drawer (alm)	10	Appelez-nous	-
15	74002316		Panel, Drawer (alm)	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74002481		Screw	10			$ 5.82
17	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
18	74002397		Lining, Drawer	10	Appelez-nous	-
19	8016P015-60		Glide	10			$ 5.65
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
20	74002398		Hinge, Drawer	10	Appelez-nous	-
