01 - Body
02 - Control Panel (bda, Bdw)
03 - Door/drawer
04 - Gas Controls
05 - Oven/base
06 - Top Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

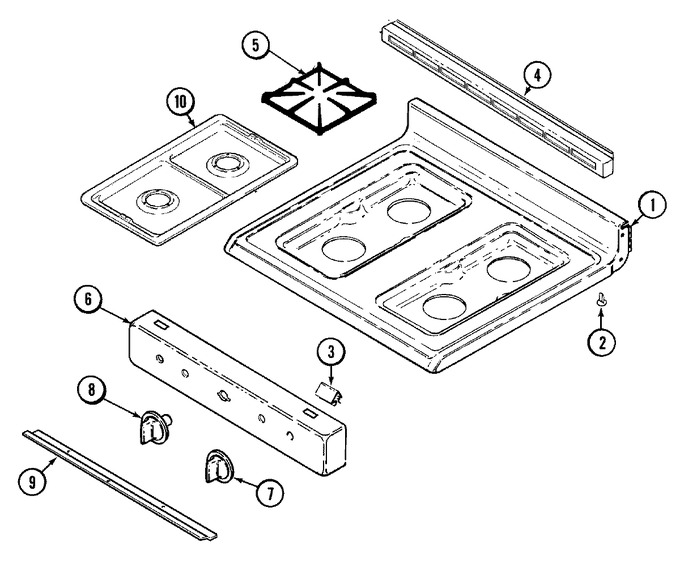

| 1 | 74003513 | Top, Main (alm) | 10 |
|
- | ||||
| 1 | 74001428 | Spacer, Main Top | 10 |
|
- | ||||
| 2 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 3 | 7112P087-60 | Clip, Top Locking | 10 |
|
- | ||||
| 4 | 74003520 | Trim, Vent (taupe) | 10 |
|
- | ||||
| 4 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 10 |
|
$ 11.92 | ||||
| 5 | 74003514 | Grate (taupe) | 10 |
|
- | ||||
| 6 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 74004794 | Panel, Manifold (alm) | 10 |
|
- | ||||
| 6 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 7 | 74004792 | Knob, Burner Valve (alm) | 10 |
|
- | ||||
| 7 | 74004791 | Knob, Burner Valve (alm) | 10 |
|
- | ||||
| 8 | 74004793 | Knob, Thermostat (alm) | 10 |
|
- | ||||
| 8 | 74005093 | Knob, Thermostat (bsq) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 9 | 74002447 | Shield, Sight | 10 |
|
- | ||||
| 10 | 5401A452-60 | Drip Bowl Kit (accessory) | 10 |
|
- |
