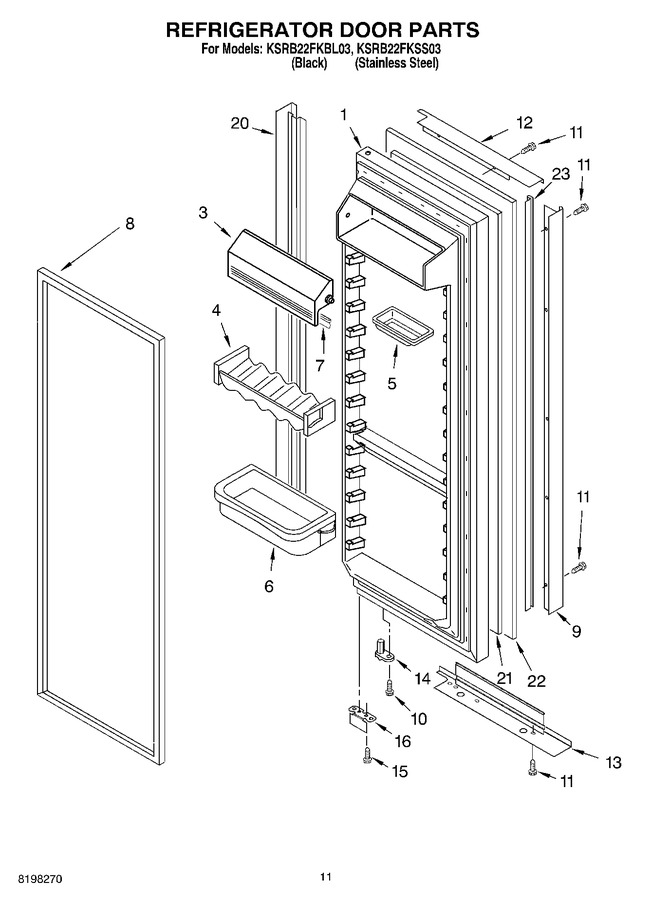

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219842B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Dish, Butter		Appelez-nous	-
6	2205821		Shelf Bin		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 287.64
9	2206846S		Handle (stainless Steel)		Appelez-nous	-
9	2206846B		Handle (black)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
11	3400897		Screw (stainless Steel)		Appelez-nous	-
11	3400899		Screw (black)				$ 7.74
12	2220432B		Trim, Door Top (black)		Appelez-nous	-
12	2220432S		Trim, Door Top (stainless Steel)		Appelez-nous	-
13	2220437S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
13	2220437B		Trim, Door Bottom (black)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
15	WP489483		Screw   (Replaces: 489420)				$ 9.78
16	2206630B		Bracket, Door Stop (black)		Appelez-nous	-
20	2220431B		Trim, Hinge Side (black)		Appelez-nous	-
20	2220431S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
21	2219804		Board, Filler		Appelez-nous	-
22	2206886B		Panel, Door (black)		Appelez-nous	-
22	2206892S		Panel, Door (stainless Steel)		Appelez-nous	-
23	2206894B		Edging, Panel		Appelez-nous	-
