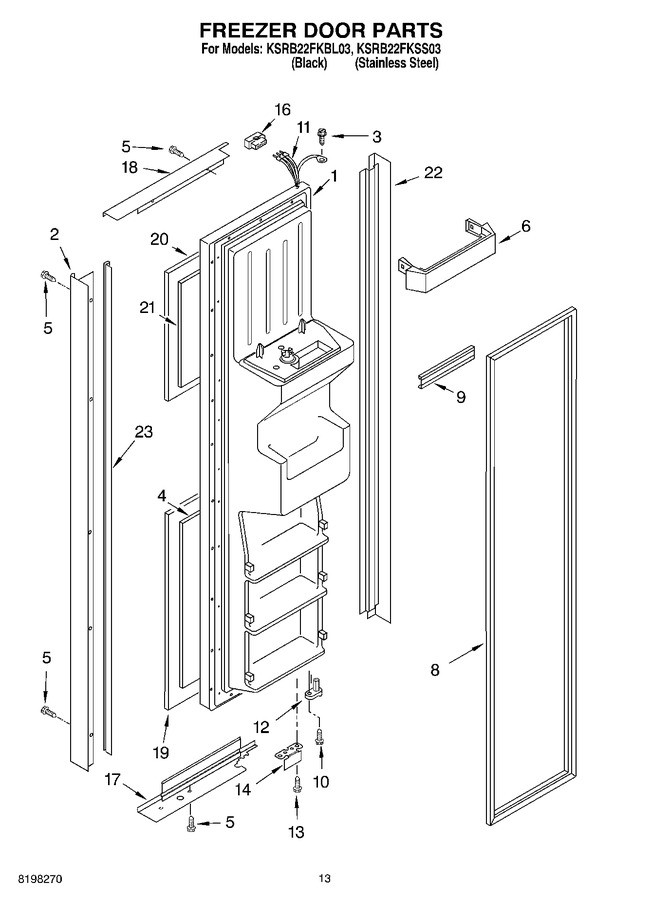

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2219846B | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 2 | 2206842S | Handle (stainless Steel) |
|
- | |||||
| 2 | 2206842B | Handle (black) |
|
- | |||||
| 3 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 4 | 2219802 | Board, Filler Lower |
|
- | |||||
| 5 | 3400897 | Screw (stainless Steel) |
|
- | |||||
| 5 | 3400899 | Screw (black) |
|
$ 7.74 | |||||
| 6 | 2171071 | Trivet, Shelf (4) |
|
- | |||||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces: 2221312) |
|
$ 279.35 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2212375) |
|
Immediately | $ 20.80 | ||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 11 | 2207213 | Wire Harness |
|
- | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 5.75 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 14 | 2206630B | Bracket, Door Stop (black) |
|
- | |||||
| 16 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 21.29 | |||||
| 17 | 2220436S | Trim, Door Bottom (stainless Steel) |
|
- | |||||
| 17 | 2220436B | Trim, Door Bottom (black) |
|
- | |||||
| 18 | 2220434S | Trim, Door Top (stainless Steel) |
|
- | |||||
| 18 | 2220434B | Trim, Door Top (black) |
|
- | |||||
| 19 | 2206885B | Panel, Door Lower (black) |
|
- | |||||
| 19 | 2206891S | Panel, Door Lower (stainless Steel) |
|
- | |||||
| 20 | 2206884B | Panel, Door Upper (black) |
|
- | |||||
| 20 | 2206890S | Panel, Door Upper (stainless Steel) |
|
- | |||||
| 21 | 2219801 | Board, Filler Upper |
|
- | |||||
| 22 | 2220429B | Trim, Hinge Side (black) |
|
- | |||||
| 22 | 2220429S | Trim, Hinge Side (stainless Steel) |
|
- | |||||
| 23 | 2206894B | Edging, Panel |
|
- |
