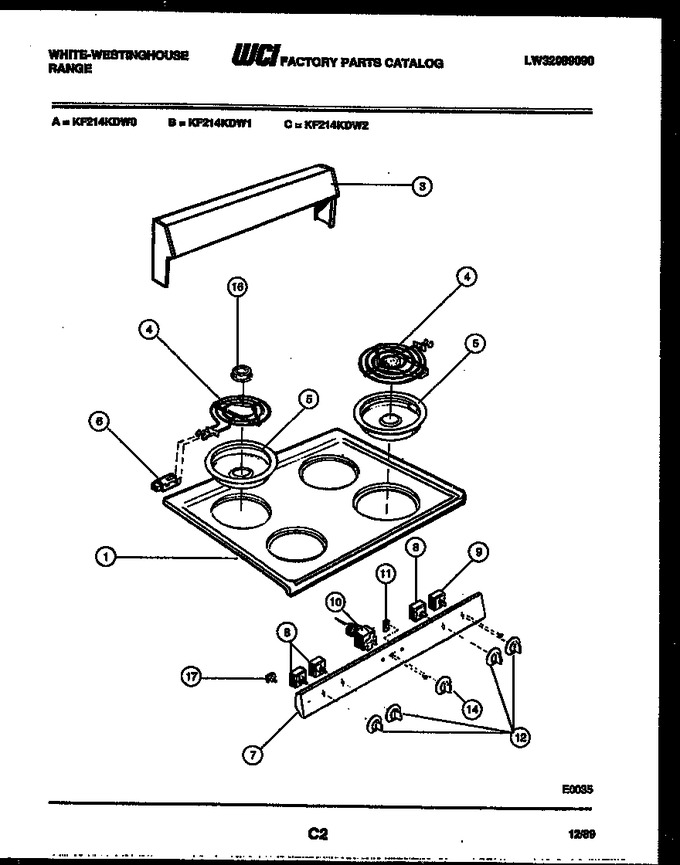

02 - Cooktop Parts And Backguard
03 - Body Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014543 | Top-white |
|
- | |||||
| 3 | 3016959 | Backguard White |
|
- | |||||
| 3 | 3016960 | Backguard Almond |
|
- | |||||
| 4 | 3015715 | Element S/u Large |
|
- | |||||
| 4 | 3015716 | Element S/u Small (3) |
|
- | |||||
| 5 | 3205285 | Pan S/u Small (3) |
|
- | |||||
| 5 | 3205286 | Pan S/u Large |
|
- | |||||
| 6 | 3016957 | Block Terminal (4) |
|
- | |||||
| 7 | 3016983 | Panel Switch White |
|
- | |||||
| 8 | 08011487 | Switch S/u Small (3) |
|
- | |||||
| 9 | 3051035 | Switch S/u Large |
|
- | |||||
| 10 | 3015184 | Thermostat |
|
- | |||||
| 11 | 3051034 | Light-indicator (2) |
|
- | |||||
| 12 | 3051028 | Knob Supply Unit (4) |
|
- | |||||
| 14 | 3051030 | Knob-thermostat |
|
- | |||||
| 16 | 3051358 | Medallion (4) |
|
- | |||||
| 17 | 3016982 | Switch Light |
|
- | |||||
| *25929 | 3015721 | Cup-term Block Mtg (4) |
|
- |
