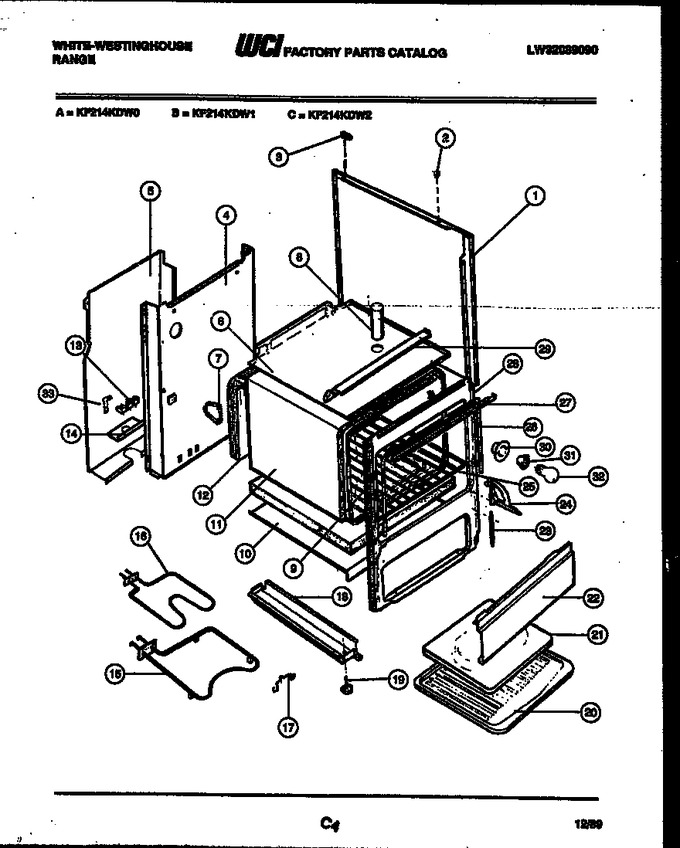

02 - Cooktop Parts And Backguard


03 - Body Parts


04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051061		Panel Sd Lh & Rh White		Appelez-nous	-
2	08068054		Grommet (2)		Appelez-nous	-
3	3016129		Grommet (2)		Appelez-nous	-
4	3203613		Back-main		Appelez-nous	-
5	3203615		Cover-wire		Appelez-nous	-
6	3205692		Burner-box		Appelez-nous	-
7	3051096		Support Rear Oven (2)		Appelez-nous	-
8	3051064		Tube Oven Vent		Appelez-nous	-
9	3016533		Liner-oven Rh		Appelez-nous	-
9	3017600		Liner-oven Top		Appelez-nous	-
9	3017597		Liner-oven Bottom		Appelez-nous	-
9	3017724		Liner-back		Appelez-nous	-
9	3017599		Liner-oven Lh		Appelez-nous	-
10	3016945		Pan-bottom		Appelez-nous	-
11	3016946		Insulation-wrap		Appelez-nous	-
12	3016947		Insulation-back		Appelez-nous	-
13	3051098		Block Terminal		Appelez-nous	-
14	3205588		Support-conduit		Appelez-nous	-
15	3009292		Element - Bake		Appelez-nous	-
16	3009293		Element-broil		Appelez-nous	-
17	3009445		Support-broil Element		Appelez-nous	-
18	08068047		Base Rail		Appelez-nous	-
19	3051080		Leg Leveling (4)		Appelez-nous	-
20	3016973		Pan-broiler		Appelez-nous	-
21	3017712		Grille		Appelez-nous	-
22	35048000		Panel False White		Appelez-nous	-
23	3051079		Spring (2)		Appelez-nous	-
24	3204672		Hinge Assembly Lh		Appelez-nous	-
24	3204670		Hinge Assembly Rh		Appelez-nous	-
25	3016128		Rack-oven (2)		Appelez-nous	-
26	08013916		Seal - Door		Appelez-nous	-
27	3016950		Support-control Pnl		Appelez-nous	-
28	5303208262		Frame-front		Appelez-nous	-
29	3016951		Shield		Appelez-nous	-
30	3051511		Clip-oven Light				$ 60.22
31	3009410		Receptacle		Appelez-nous	-
32	3013071		Bulb		Appelez-nous	-
33	K1145190		Strap-ground		Appelez-nous	-
32A	3934059		Anti - Tip Kit (non-illustrated)		Appelez-nous	-
32B	9126		Clip-capillary (non-illustrated)				$ 24.99
