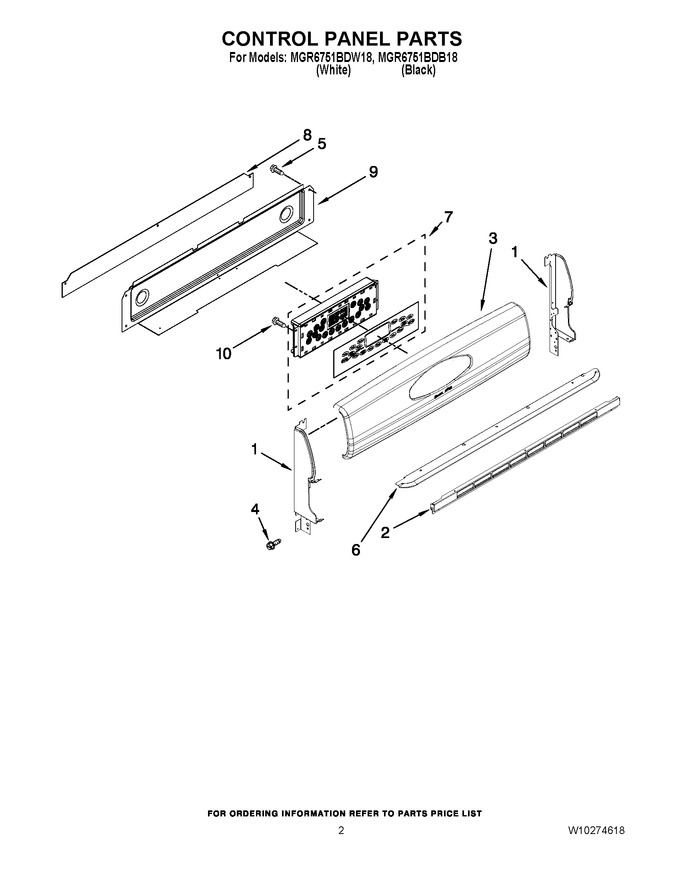

02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3807F734-70		Support, Backguard (black Left)				$ 18.35
1	3807F733-71		Support, Backguard (white Left)				$ 9.32
1	3807F733-70		Support, Backguard (black Right)				$ 27.86
1	3807F734-71		Support, Backguard (white Right)				$ 38.79
2	3608F121-37		Trim, Vent (white)				$ 62.80
2	3608F121-09		Trim, Vent (black)				$ 12.99
3	2602N352-81		Panel, Control (white)		Appelez-nous	-
3	2602N352-09		Panel, Control (black)		Appelez-nous	-
4	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
5	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.26
6	3604F398-09		Shield, Vent				$ 31.26
7	W10336579		Control W/overlay (white)		Appelez-nous	-
7	W10336577		Control W/overlay (black)		Appelez-nous	-
8	8036P025-60		Shield, Sight		Appelez-nous	-
9	4005F805-51		Cover, Rear Wire		Appelez-nous	-
10	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.47
