SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts

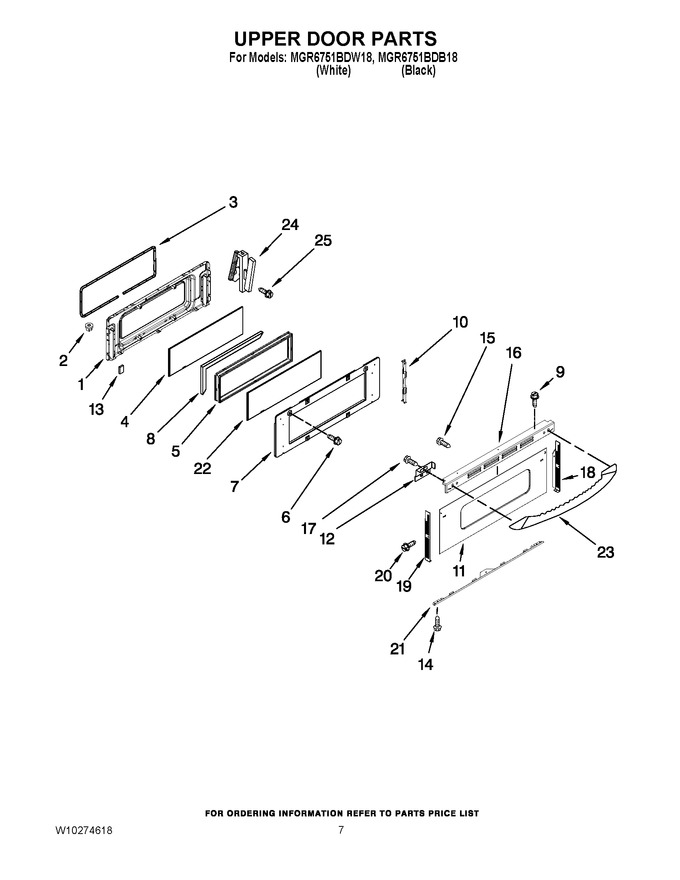

05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2402W248-19		Lining, Door		Appelez-nous	-
2	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 9.91
3	WP7201P091-60		Gasket, Door   (Replaces: 7201P091-60)				$ 137.97
4	7902P521-60		Glass, Inner (2)		Appelez-nous	-
5	7907P034-60		Frame, Glass		Appelez-nous	-
6	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
7	3601F354-45		Baffle, Door				$ 66.15
8	7002P488-60		Insulation, Door		Appelez-nous	-
9	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
10	3804F179-45		Retainer, Glass		Appelez-nous	-
11	7902P800-60		Baffle, Door (incl. Foil Tape) (black)		Appelez-nous	-
11	7902P745-60		Baffle, Door (incl. Foil Tape) (white)		Appelez-nous	-
12	3801F832-45		Bracket, Handle (left)				$ 19.12
12	3801F831-45		Bracket, Handle (right)				$ 19.17
13	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.48
14	WP74006515		Screw W/washer   (Replaces: 7101P543-60)				$ 7.29
15	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
16	3608F141-70		Trim, Door Top (black)				$ 96.37
16	3608F141-71		Trim, Door Top (white)				$ 98.12
17	WP74006515		Screw, Handle   (Replaces: 7101P681-60)				$ 7.29
18	3608F118-71		Trim, Door (rt) (white)				$ 7.00
18	3608F118-70		Trim, Door (rt) (black)				$ 47.51
19	3608F119-70		Trim, Door (lt) (black)				$ 31.88
19	3608F119-71		Trim, Door (lt) (white)				$ 8.47
20	WP98008545		Screw, Trim   (Replaces: 7101P633-60)				$ 15.94
21	3807F708-70		Support, Glass (black)				$ 63.97
21	WP3807F708-71		Support, Glass (white)   (Replaces: 3807F708-71)				$ 144.83
22	7902P520-60		Glass, Door		Appelez-nous	-
23	WP74011767		Handle, Door (black)   (Replaces: 7701P516-60)				$ 225.61
23	WP74011768		Handle, Door (white)   (Replaces: 7701P517-60)			Immediately	$ 194.06
24	7106P148-60		Hinge, Door (2)		Appelez-nous	-
25	WP4159193		Screw (4)   (Replaces: 7101P282-60)				$ 4.29

    View Diagram in Separate Window       Print Part List
