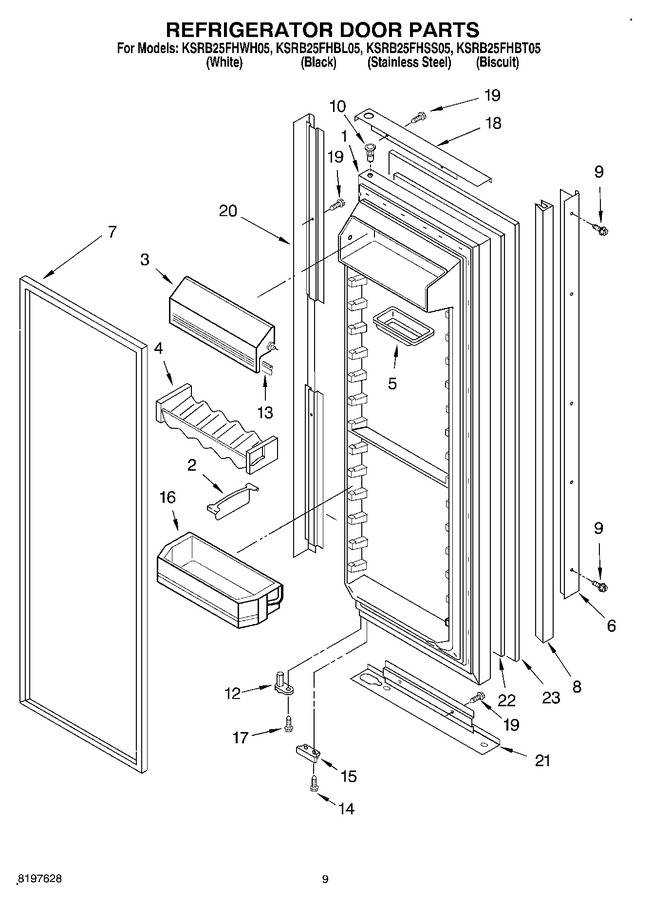

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2203356W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2203356B		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	2203356T		Refrigerator Door (includes No.7) (biscuit)		Appelez-nous	-
2	2195497		Load Lock		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2203810W		Handle (white)		Appelez-nous	-
6	2203810B		Handle (black)		Appelez-nous	-
6	2203810T		Handle (biscuit)		Appelez-nous	-
6	2203816S		Handle (stainless Steel)		Appelez-nous	-
7	2159083		Door Gasket, Magnetic (black)   (Replaces: 2196241)				$ 226.34
7	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2196243)			Immediately	$ 285.43
8	2204374B		Edging, Panel (black)		Appelez-nous	-
8	2204374W		Edging, Panel (white)		Appelez-nous	-
8	2204374T		Edging, Panel (biscuit)		Appelez-nous	-
9	3400899		Screw (black)				$ 7.74
9	8281135		Screw (biscuit)		Appelez-nous	-
9	3400897		Screw (stainless)		Appelez-nous	-
9	3400898		Screw (white)		Appelez-nous	-
10	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 6.98
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2195952		Bracket, Door Stop (chrome)		Appelez-nous	-
15	2195950		Bracket, Door Stop (black)				$ 5.84
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	2203380T		Trim, Door (top) (biscuit)		Appelez-nous	-
18	2203381S		Trim, Door (top) (stainless Steel)		Appelez-nous	-
18	2203380B		Trim, Door (top) (black)		Appelez-nous	-
18	2203380W		Trim, Door (top) (white)		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	2186688W		Trim, Door (hinge Side) (white)		Appelez-nous	-
20	2186688B		Trim, Door (hinge Side) (black)		Appelez-nous	-
20	2186765S		Trim, Door (hinge Side) (stainless Steel)		Appelez-nous	-
20	2186688T		Trim, Door (hinge Side) (biscuit)		Appelez-nous	-
21	2203376T		Trim, Door (bottom) (biscuit)		Appelez-nous	-
21	2203376W		Trim, Door (bottom) (white)		Appelez-nous	-
21	2203376B		Trim, Door (bottom) (black)		Appelez-nous	-
21	2203377S		Trim, Door (bottom) (stainless Steel)		Appelez-nous	-
22	2208279		Filler, Panel		Appelez-nous	-
23	2203288W		Panel (white)		Appelez-nous	-
23	2203288B		Panel (black)		Appelez-nous	-
23	2203294S		Panel (stainless Steel)		Appelez-nous	-
23	2203288T		Panel (biscuit)		Appelez-nous	-
