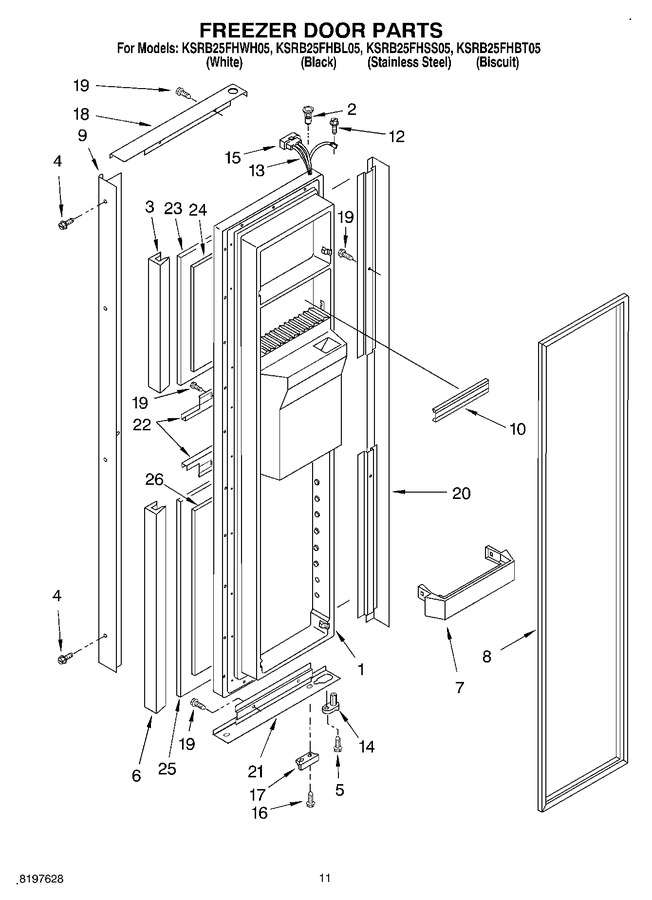

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2204347W | Freezer Door (includes No.8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | 2204347B | Freezer Door (includes No.8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2204347S | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 1 | 2204347T | Freezer Door (includes No.8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 2 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 6.98 | |||||
| 3 | 2204372W | Edging, Panel (white) |
|
- | |||||
| 3 | 2204372T | Edging, Panel (biscuit) |
|
- | |||||
| 3 | 2204372B | Edging, Panel (black) |
|
- | |||||
| 4 | 3400898 | Screw (white) |
|
- | |||||
| 4 | 3400899 | Screw (black) |
|
$ 7.74 | |||||
| 4 | 8281135 | Screw (biscuit) |
|
- | |||||
| 4 | 3400897 | Screw (stainless) |
|
- | |||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 6 | 2204375W | Edging, Panel (white) |
|
- | |||||
| 6 | 2204375B | Edging, Panel (black) |
|
- | |||||
| 6 | 2204375T | Edging, Panel (biscuit) |
|
- | |||||
| 7 | 2171070 | Shelf Bin (4) |
|
- | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2196242) |
|
$ 284.99 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2196244) |
|
$ 279.17 | |||||
| 9 | 2203813B | Handle (black) |
|
- | |||||
| 9 | 2203813T | Handle (biscuit) |
|
- | |||||
| 9 | 2203819S | Handle (stainless Steel) |
|
- | |||||
| 9 | 2203813W | Handle (white) |
|
- | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2209681) |
|
Immediately | $ 20.80 | ||||
| 12 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 13 | 2180229 | Wire Harness |
|
$ 73.70 | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 5.75 | ||||
| 15 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 21.29 | |||||
| 16 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 17 | 2195952 | Bracket, Door Stop (chrome) |
|
- | |||||
| 17 | 2195950 | Bracket, Door Stop (black) |
|
$ 5.84 | |||||
| 18 | 2203372W | Trim, Door (top) (white) |
|
- | |||||
| 18 | 2203372T | Trim, Door (top) (biscuit) |
|
- | |||||
| 18 | 2203373S | Trim, Door (top) (stainless Steel) |
|
- | |||||
| 18 | 2203372B | Trim, Door (top) (black) |
|
- | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 20 | 2186688B | Trim, Door (hinge Side) (black) |
|
- | |||||
| 20 | 2186688W | Trim, Door (hinge Side) (white) |
|
- | |||||
| 20 | 2186688T | Trim, Door (hinge Side) (biscuit) |
|
- | |||||
| 20 | 2186765S | Trim, Door (hinge Side) (stainless Steel) |
|
- | |||||
| 21 | 2203367S | Trim, Door (bottom) (stainless Steel) |
|
- | |||||
| 21 | 2203366W | Trim, Door (bottom) (white) |
|
- | |||||
| 21 | 2203366T | Trim, Door (bottom) (biscuit) |
|
- | |||||
| 21 | 2203366B | Trim, Door (bottom) (black) |
|
- | |||||
| 22 | 2186778S | Trim, Door (dispenser Top And Bottom) (stainless Steel) |
|
- | |||||
| 22 | 2186702T | Trim, Door (dispenser, Top & Bottom) (biscuit) |
|
- | |||||
| 22 | 2186702W | Trim, Door (dispenser, Top & Bottom) (white) |
|
- | |||||
| 22 | 2186702B | Trim, Door (dispenser, Top & Bottom) (black) |
|
- | |||||
| 23 | 2203290S | Panel, Upper (stainless Steel) |
|
- | |||||
| 23 | 2203284W | Panel, Upper (white) |
|
- | |||||
| 23 | 2203284B | Panel, Upper (black) |
|
- | |||||
| 23 | 2203284T | Panel, Upper (biscuit) |
|
- | |||||
| 24 | 2208277 | Filler, Panel (upper) |
|
- | |||||
| 25 | 2203292S | Panel, Lower (stainless Steel) |
|
- | |||||
| 25 | 2203286W | Panel, Lower (white) |
|
- | |||||
| 25 | 2203286B | Panel, Lower (black) |
|
- | |||||
| 25 | 2203286T | Panel, Lower (biscuit) |
|
- | |||||
| 26 | 2208278 | Filler, Panel (lower) |
|
- |
