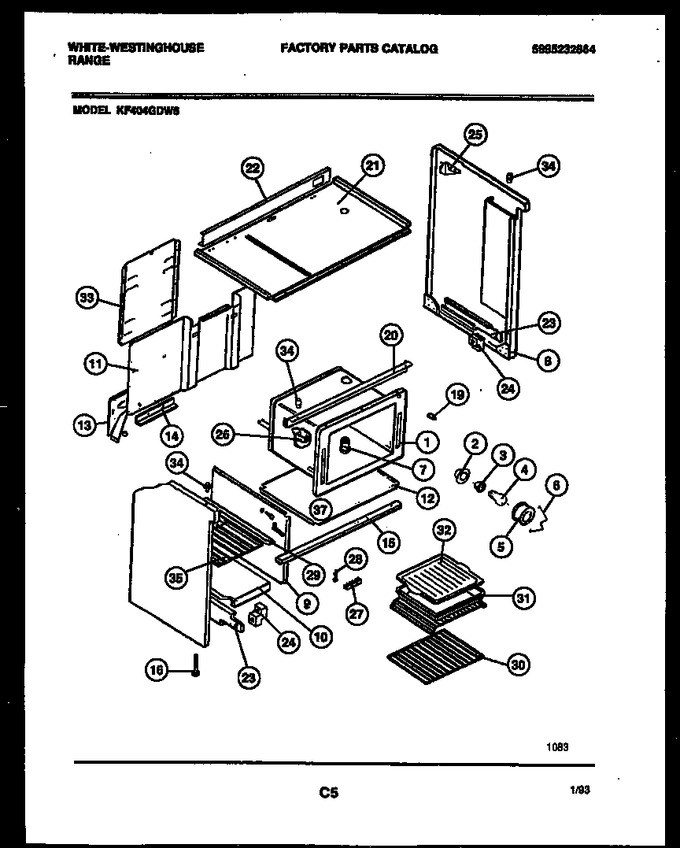

02 - Body Parts
03 - Backguard
04 - Door And Drawer Parts
05 - Door Parts
06 - Broiler Parts
07 - Cooktop Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303292166 | Oven Assembly-right |
|
- | |||||
| 2 | 3051511 | Housing-light |
|
$ 60.22 | |||||
| 3 | 316116400 | Receptacle - Oven Lt (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 3201908 | Oven-light |
|
- | |||||
| 5 | 5304524341 | Lens-oven Light (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303205904 | Retainer-lens |
|
$ 7.67 | |||||
| 7 | 5301311218 | Tube - Oven Vent |
|
- | |||||
| 8 | 5308012527 | Pnl-side Rh White |
|
- | |||||
| 9 | 08016542 | Partition - Center |
|
- | |||||
| 10 | 08011951 | Panel - Bottom |
|
- | |||||
| 11 | 3204827 | Back, Range |
|
- | |||||
| 12 | 3206275 | Panel, Bottom |
|
- | |||||
| 13 | 3204822 | Gusset, Rear, Rh |
|
- | |||||
| 14 | 5301307085 | Support-gusset |
|
- | |||||
| 15 | 08011954 | Channel, Oven Support |
|
$ 47.60 | |||||
| 16 | 5303205540 | Leg Leveler (4) |
|
- | |||||
| 19 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| 20 | 5303294354 | Bracket - Cooktop |
|
- | |||||
| 21 | 5303294355 | Panel-sub Top |
|
- | |||||
| 22 | 5303209319 | Shield - Wire |
|
- | |||||
| 23 | 5308015746 | Glide - Dwr Rh |
|
- | |||||
| 24 | 3051654 | Glide, Front (2) |
|
- | |||||
| 25 | 3051657 | Gusset - Bkgrd (2) |
|
- | |||||
| 26 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 27 | 5304409888 | Terminal Block (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 28 | 5301145190 | Plate-grounding |
|
- | |||||
| 29 | 5301315199 | Glide-storage Rack |
|
- | |||||
| 30 | 5303281625 | Rack Oven |
|
- | |||||
| 31 | 5303293416 | Pan-broiler |
|
- | |||||
| 32 | 5303293415 | Insert-broiler Pan |
|
- | |||||
| 33 | 5303051856 | Panel - Wire Cover |
|
- | |||||
| 34 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 35 | 08011960 | Rack - Compartment |
|
- | |||||
| 37 | 3204318 | Plate-strike |
|
- | |||||
| *72547 | 3934058 | Anti-tip Brkt Kit |
|
$ 98.75 | |||||
| 13A | 3204823 | Gusset, Rear, Lh |
|
- | |||||
| 23A | 3051652 | Glide - Dwr Lh |
|
- | |||||
| 6A | 3051521 | Insulation - Wrap (non-illustrated) |
|
- | |||||
| 7A | 5303051630 | Insulation - Back (non-illustrated) |
|
- | |||||
| 8A | 5308012528 | Pnl-side Lh White |
|
- |
