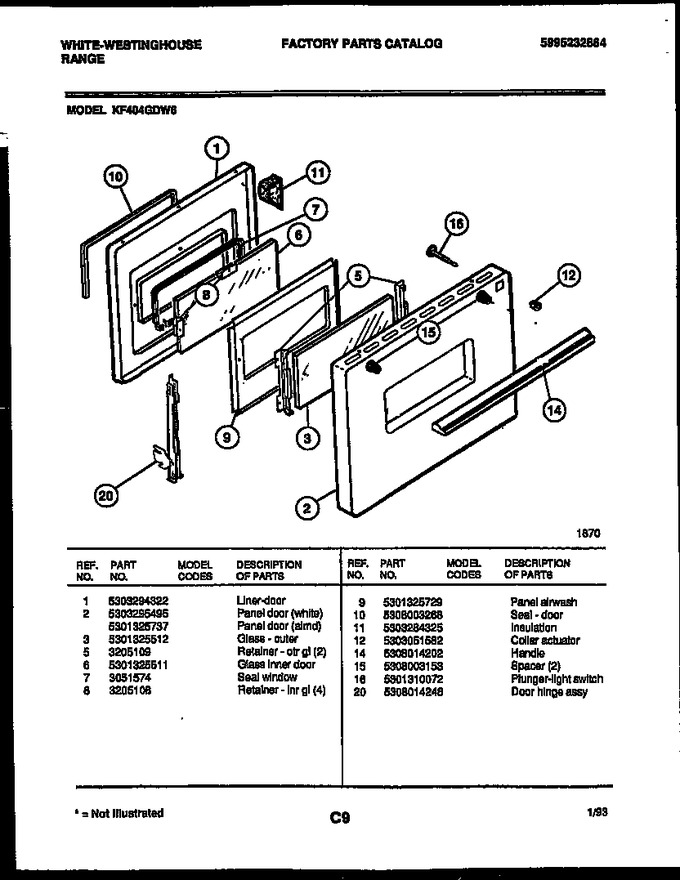

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303294322 | Liner-door |
|
- | |||||
| 2 | 5303295495 | Panel Door (white) |
|
- | |||||
| 3 | 5301325512 | Glass - Outer |
|
- | |||||
| 5 | 3205109 | Retainer - Otr Gl (2) |
|
- | |||||
| 6 | 5301325511 | Glass Inner Door |
|
- | |||||
| 7 | 3051574 | Seal Window |
|
$ 36.58 | |||||
| 8 | 3205108 | Retainer - Inr Gl (4) |
|
- | |||||
| 9 | 5301325729 | Panel-airwash |
|
- | |||||
| 10 | 5308003268 | Seal, Door |
|
- | |||||
| 11 | 5303284325 | Insulation |
|
- | |||||
| 12 | 5303051582 | Collar Actuator |
|
- | |||||
| 14 | 5308014202 | Handle |
|
- | |||||
| 15 | 5308003153 | Spacer (2) |
|
- | |||||
| 16 | 5301310072 | Plunger-light Switch |
|
- | |||||
| 20 | 5308014248 | Door Hinge Assy |
|
- |
