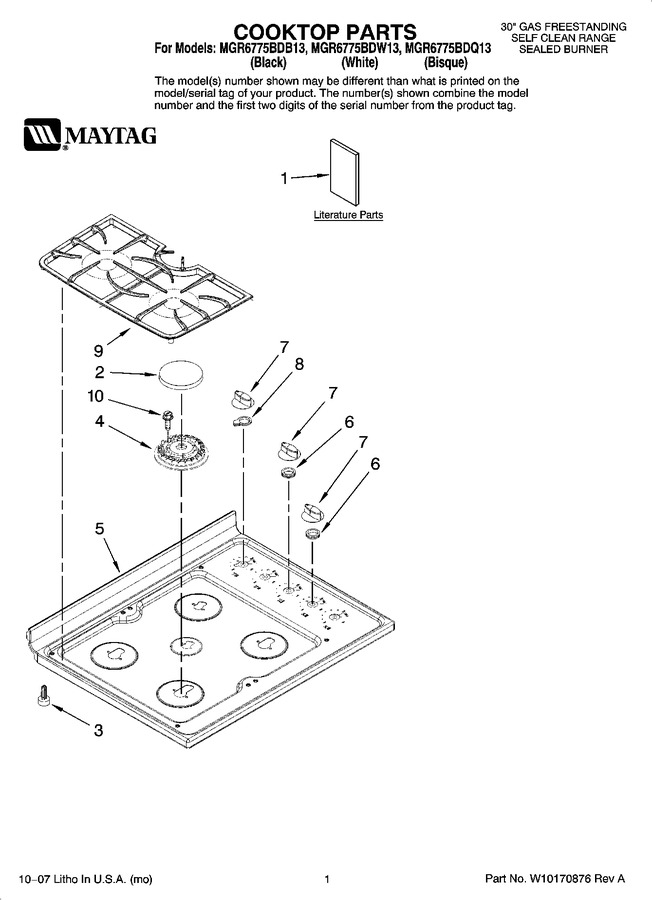

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10170902 | Owners Manual |
|
- | |||||
| 1 | W10170901 | Installation Instructions |
|
- | |||||
| 2 | WP74007419 | Cap, Burner (small (bis) (1)) (Replaces: 74007419) |
|
$ 66.47 | |||||
| 2 | WP74007925 | Cap, Burner (large (blk) (1)) (Replaces: 74007925) |
|
$ 86.81 | |||||
| 2 | WP74007752 | Cap, Burner (large (gry) (1)) (Replaces: 74007752) |
|
$ 98.17 | |||||
| 2 | 74007751 | Cap, Burner (large (bis) (1)) |
|
$ 41.96 | |||||
| 2 | 74007414 | Cap, Burner (small (blk) (1)) |
|
- | |||||
| 2 | 74007422 | Cap, Burner (small (gry) (1)) |
|
$ 30.56 | |||||
| 2 | WP3191898 | Cap, Burner (ex Large (blk) (1)) (Replaces: 74007416) |
|
$ 60.86 | |||||
| 2 | WP74007420 | Cap, Burner (ex Large (gry) (1)) (Replaces: 74007420) |
|
$ 112.29 | |||||
| 2 | WP74007417 | Cap, Burner (ex Large (bis) (1)) (Replaces: 74007417) |
|
$ 121.73 | |||||
| 2 | WP74007415 | Cap, Burner (medium (blk) (2)) (Replaces: 74007415) |
|
$ 87.35 | |||||
| 2 | WP74007421 | Cap, Burner (medium (gry) (2)) (Replaces: 74007421) |
|
$ 81.71 | |||||
| 2 | 74007418 | Cap, Burner (medium (bis) (2)) |
|
$ 39.39 | |||||
| 3 | W11189172 | Glide, Main Top (Replaces: 74004558) |
|
Immediately | $ 15.09 | ||||
| 4 | WPW10406243 | Burner (center 5k (1)) (Replaces: 74007411) |
|
Immediately | $ 33.50 | ||||
| 4 | WPW10406283 | Burner (lr/rr 9.2k (2)) (Replaces: 74009900) |
|
$ 66.87 | |||||
| 4 | WPW10406878 | Burner (left Front 16k (1)) (Replaces: 74007413) |
|
Immediately | $ 92.12 | ||||
| 4 | WPW10406797 | Burner (right Front 12k(1)) (Replaces: 74007698) |
|
$ 79.64 | |||||
| 5 | 2001N219-09 | Cooktop (black) |
|
- | |||||
| 5 | 2001N219-81 | Cooktop (white) |
|
- | |||||
| 5 | 2001N219-88 | Cooktop (bisque) |
|
- | |||||
| 6 | WP74005934 | Grommet, Knob (4) (Replaces: 74005934) |
|
$ 7.66 | |||||
| 7 | 74010080 | Knob, Control (5) (bisque) |
|
- | |||||
| 7 | W11189172 | Knob, Control (5) (black) (Replaces: 74004558) |
|
Immediately | $ 15.09 | ||||
| 7 | 74010081 | Knob, Control (5) (white) |
|
- | |||||
| 8 | 74007368 | Grommet, Knob (1) |
|
$ 6.11 | |||||
| 9 | 74010125 | Grate, Burner (2) (includes Bumpers) (black) |
|
$ 95.60 | |||||
| 9 | 74010126 | Grate, Burner (2) (includes Bumpers) (gray) |
|
$ 97.76 | |||||
| 9 | 74010127 | Grate, Burner (2) (includes Bumpers) (taupe) |
|
$ 114.06 | |||||
| 10 | WP3368921 | Screw (8) (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 |
