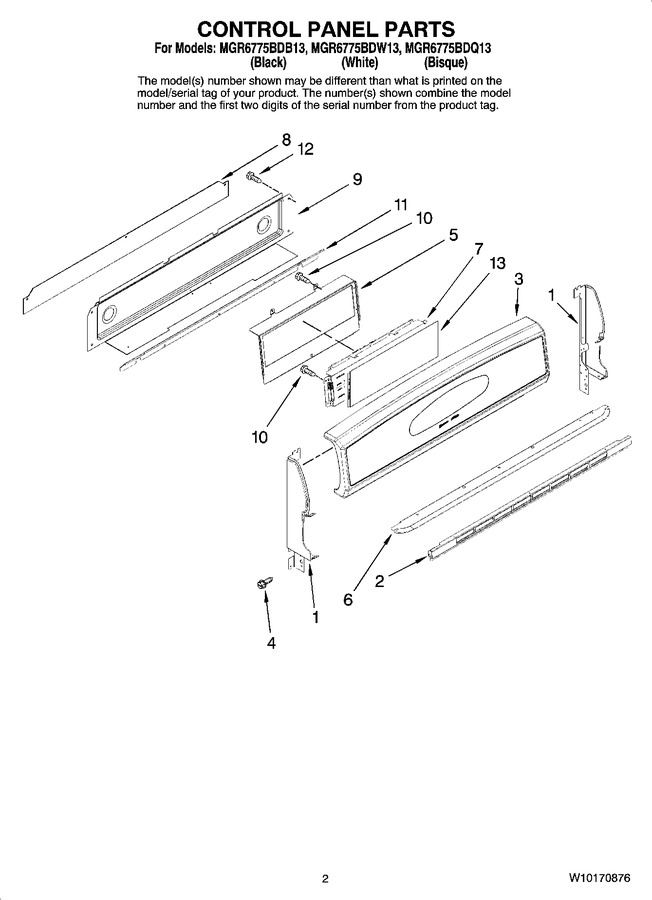

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010202 | Support, Backguard (black Left) |
|
- | |||||
| 1 | 74010201 | Support, Backguard (black Right) |
|
- | |||||
| 1 | 74010213 | Support, Backguard (white Left) |
|
- | |||||
| 1 | 74010212 | Support, Backguard (white Right) |
|
- | |||||
| 1 | 74010712 | Support, Backguard (bisque Left) |
|
- | |||||
| 1 | 74010714 | Support, Backguard (bisque Right) |
|
- | |||||
| 2 | 74009797 | Trim, Vent (black) |
|
- | |||||
| 2 | 74009795 | Trim, Vent (gray) |
|
- | |||||
| 2 | 74009796 | Trim, Vent (taupe) |
|
- | |||||
| 3 | 2602N352-09 | Panel, Control (black) |
|
- | |||||
| 3 | 2602N352-88 | Panel, Control (bisque) |
|
- | |||||
| 3 | 2602N352-81 | Panel, Control (white) |
|
- | |||||
| 4 | WP98008545 | Screw (Replaces: 74009537) |
|
$ 15.94 | |||||
| 5 | 74009052 | Bracket, Control |
|
- | |||||
| 6 | 74009798 | Shield, Vent (bisque) |
|
- | |||||
| 6 | 74009799 | Shield, Vent (white) |
|
- | |||||
| 6 | 74009800 | Shield, Vent (black) |
|
- | |||||
| 7 | WPW10166969 | Control (erc) (Replaces: 74010580) |
|
Immediately | $ 374.09 | ||||
| 8 | 74010084 | Shield, Sight |
|
- | |||||
| 9 | 74011109 | Cover, Rear Wire |
|
- | |||||
| 10 | WP74003976 | Screw (Replaces: 74003976) |
|
$ 6.47 | |||||
| 11 | 74009978 | Shield, Wire |
|
- | |||||
| 12 | WP7101P434-60 | Screw (Replaces: 71001394) |
|
$ 6.26 | |||||
| 13 | W10170996 | Overlay, Control (bisque) |
|
- | |||||
| 13 | 7728P497-60 | Overlay, Control (black) |
|
- | |||||
| 13 | W10171000 | Overlay, Control (white) |
|
- |
