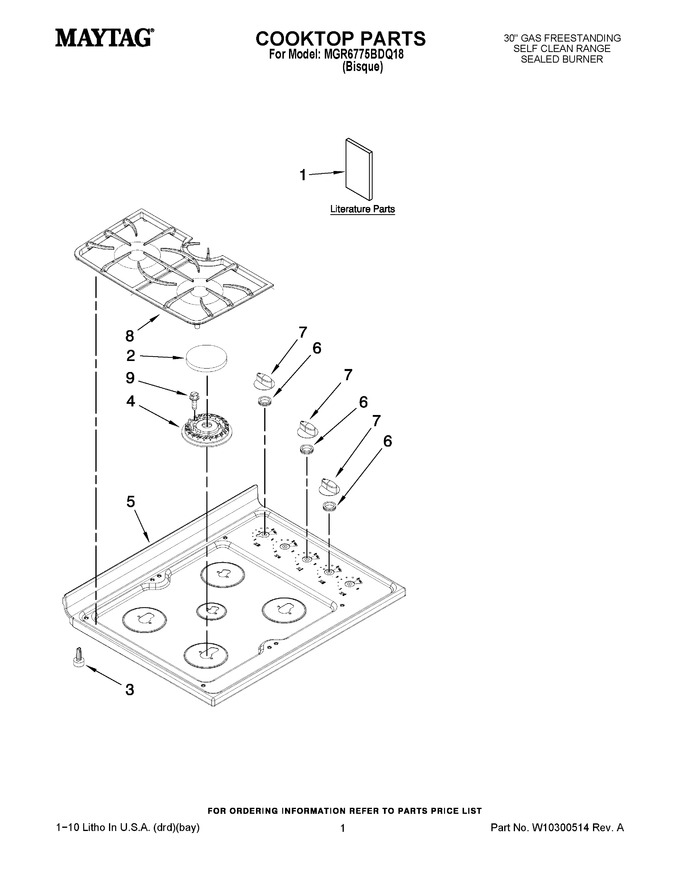

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8119P393-60		Diagram, Wiring		Appelez-nous	-
1	8101P623-60		Installation Instructions		Appelez-nous	-
1	8113P707-60		Owners Manual		Appelez-nous	-
1	9762761		Brochure Tips (safe Cooking) (english)		Appelez-nous	-
1	W10065852		Brochure, Tips Safe Cooking (french)		Appelez-nous	-
2	WP74007419		Cap, Burner (center)   (Replaces: 7504P142-60)				$ 66.47
2	WP74007417		Cap, Burner (left Front)   (Replaces: 7504P144-60)				$ 121.73
2	7504P206-60		Cap, Burner (right Front)		Appelez-nous	-
2	7504P143-60		Cap, Burner (lr/rr)		Appelez-nous	-
3	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.09
4	WPW10406878		Burner (left Front 17k)   (Replaces: 8286183)			Immediately	$ 92.12
4	WPW10406797		Burner (right Front 12k)   (Replaces: 8286182)				$ 79.64
4	WPW10406243		Burner (center 6k)   (Replaces: 8286181)			Immediately	$ 33.50
4	WPW10406283		Burner (lr/rr 9.2k)   (Replaces: 7540P043-60)				$ 66.87
5	W10292720		Cooktop		Appelez-nous	-
6	8285469		Grommet, Knob (5)				$ 45.00
7	7733P424-60		Knob, Control (5)		Appelez-nous	-
8	7518P286-60		Grate, Burner (2) (includes Bumpers)		Appelez-nous	-
9	WP3368921		Screw (10)   (Replaces: 3368921)			Immediately	$ 6.42

    View Diagram in Separate Window       Print Part List
