01 - Cooktop Parts


02 - Control Panel Parts

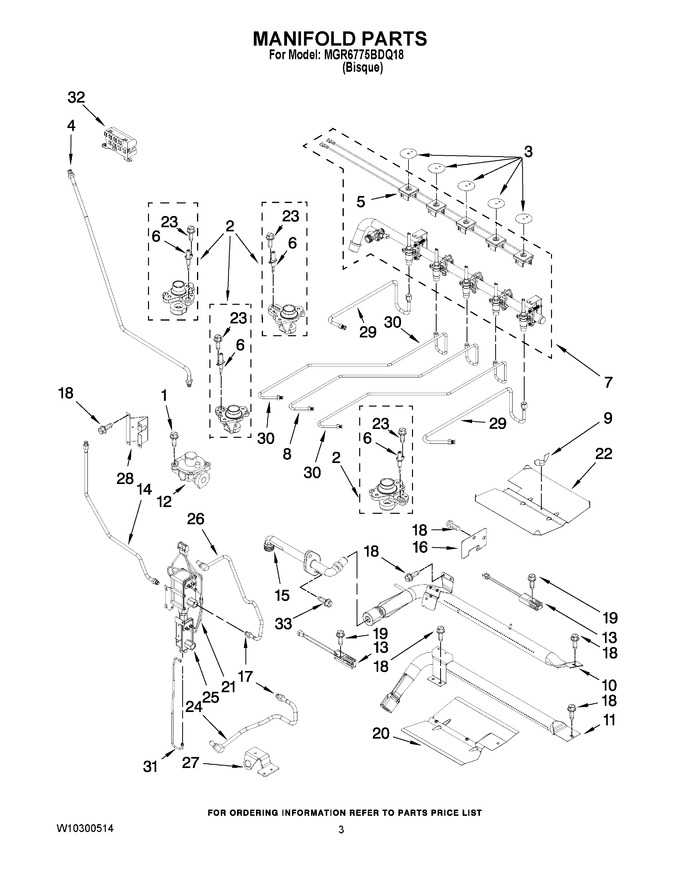

03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10068250		Screw, (2)   (Replaces: 7101P074-60)				$ 3.66
2	WP74007961		Holder, Orifice ((lr & Rr) 9.2k (2))   (Replaces: 7527P022-60)				$ 100.54
2	WP7527P023-60		Holder, Orifice (center 5k (1))   (Replaces: 7527P023-60)				$ 98.03
2	WP7527P028-60		Holder, Orifice (right Frt 12.5k(1))   (Replaces: 7527P028-60)			Immediately	$ 100.76
2	WP7527P021-60		Holder, Orifice (left Front 16k (1))   (Replaces: 7527P021-60)				$ 103.25
3	WP74008212		Cover, Valve Switch (5)   (Replaces: 7724P194-60)				$ 6.88
4	W10283143		Tubing, Regulator To Manifold		Appelez-nous	-
5	W10213453		Harness, Igniter (with Switches)				$ 257.95
6	WP8523793		Ignitor, Top Burner (5)   (Replaces: 7432M126-60)			Immediately	$ 36.15
7	W10213446		Manifold & Valve Assembly		Appelez-nous	-
8	7506P417-60		Tubing, Center		Appelez-nous	-
9	7103P030-60		Nut, Wing				$ 6.37
10	7505P323-60		Burner, Broiler				$ 40.94
11	7505P324-60		Burner, Bake		Appelez-nous	-
12	7510P089-60		Regulator, Pressure		Appelez-nous	-
13	W11596211		Igniter (bake)   (Replaces: 7432P143-60)			Immediately	$ 84.02
13	7432P130-60		Igniter (broil)		Appelez-nous	-
14	7506P429-60		Tubing (broiler Fitting To Valve)		Appelez-nous	-
15	7507P400-60		Fitting, Broiler		Appelez-nous	-
16	4005F421-45		Cover,igniter		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 8.05
18	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
20	3601F339-45		Baffle, Bake Burner				$ 98.50
21	74011297		Harness, Triple Valve   (Replaces: 5171P603-60)		Appelez-nous	-
22	3601F358-45		Baffle, Broil Burner				$ 218.28
23	WP8273062		Screw, Igniter   (Replaces: 8273062)			Immediately	$ 7.12
24	7507P395-60		Tubing, Bake Burner (with Orifice)				$ 160.07
25	WP74011290		Valve, Bake/broil   (Replaces: 7501P221-60)				$ 295.97
26	7507P396-60		Tubing, Broil Burner (with Orifice)		Appelez-nous	-
27	3801F681-45		Bracket, Orifice				$ 7.82
28	3801F691-51		Bracket, Regulator		Appelez-nous	-
29	7506P378-60		Tubing (rf & Rr)				$ 81.84
30	7506P379-60		Tubing (lf & Lr)		Appelez-nous	-
31	7506P428-60		Tubing, Manifold To Valve		Appelez-nous	-
32	7431P067-60		Module, Spark				$ 196.86
33	WP3387230		Screw (2)   (Replaces: 7101P502-60)			Immediately	$ 7.69
NI	5789A602-60		Kit, Lp Gas				$ 43.94
