Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3807F734-70 Support, Backguard (left) Special Order $ 18.35

1 3807F733-70 Support, Backguard (right) Special Order $ 27.86

2 3608F121-09 Trim, Vent Special Order $ 12.99

3 2602N351-09 Panel, Control Special Order $ 121.00

4 WP98008545 Screw   (Replaces: 7101P633-60) Special Order $ 15.94

5 3801F851-51 Bracket, Control Special Order $ 79.10

6 3604F398-09 Shield, Vent Special Order $ 31.26

7 W10305089 Control (gas) Special Order $ 650.91

8 8036P025-60 Shield, Sight Appelez-nous -
9 4005F805-51 Cover, Rear Wire Appelez-nous -
10 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 6.47

11 7101P313-60 Screw, 8ab X 3/8 Appelez-nous -
12 W11233072 Screw, 8b X 3/8   (Replaces: 7101P338-60) In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

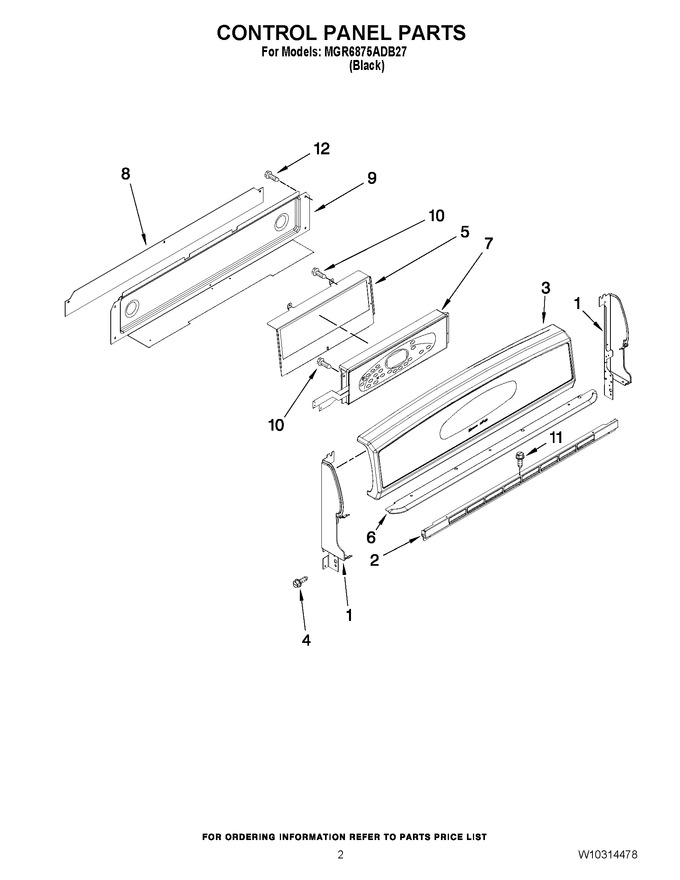

Diagram for MGR6875ADB27
