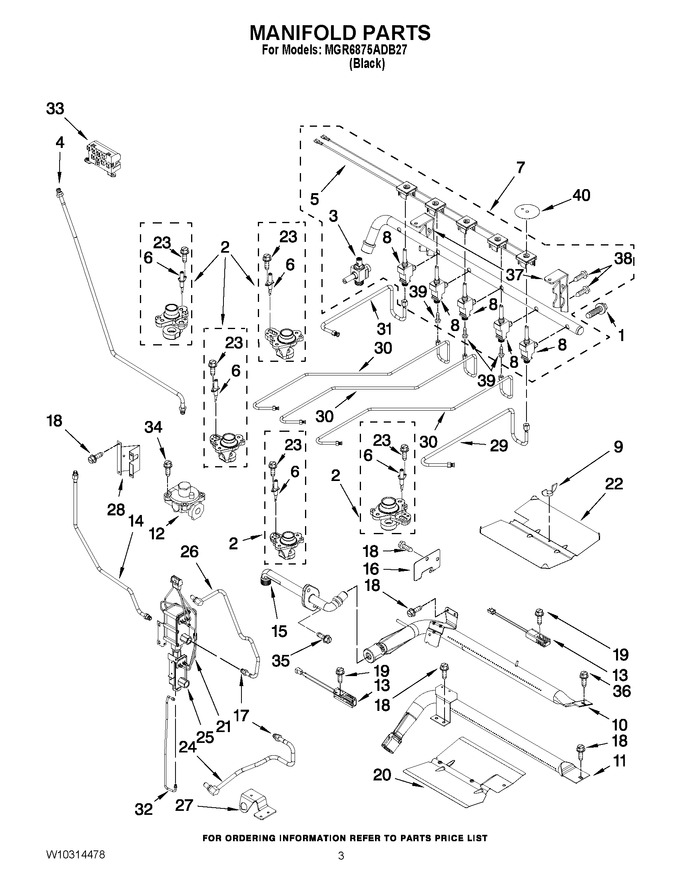

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Rack Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7101P548-60		Screw, 8-32x.375		Appelez-nous	-
2	WP7527P028-60		Holder, Orifice (right Frt 12.5k)   (Replaces: 7527P028-60)			Immediately	$ 100.76
2	WP7527P021-60		Holder, Orifice (left Front 16k)   (Replaces: 7527P021-60)				$ 103.25
2	WP7527P023-60		Holder, Orifice (center 5k)   (Replaces: 7527P023-60)				$ 98.03
2	WP74007961		Holder, Orifice (lr/rr 9.2k)   (Replaces: 7527P022-60)				$ 100.54
3	W10213452		Valve, Shut Off		Appelez-nous	-
4	W10283143		Tubing, Regulator-manifold		Appelez-nous	-
5	W10213453		Harness, Switch				$ 257.95
6	WP8523793		Ignitor,top Burner   (Replaces: 7432M126-60)			Immediately	$ 36.15
7	W10213446		Pipe, Manifold		Appelez-nous	-
8	W10254031		Assembly Valve ((lr/rr/rf)9.2k)				$ 113.19
8	W10213442		Assembly Valve (center 5k)				$ 115.42
8	W10213443		Assembly Valve (left Front 16k)		Appelez-nous	-
9	7103P030-60		Nut				$ 6.37
10	7505P323-60		Burner, Broiler				$ 40.94
11	7505P324-60		Burner, Bake		Appelez-nous	-
12	7510P089-60		Regulator, Pressure		Appelez-nous	-
13	W11596211		Igniter (bake)   (Replaces: 7432P143-60)			Immediately	$ 84.02
13	7432P130-60		Igniter (broil)		Appelez-nous	-
14	7506P429-60		Tubing (broiler Fitting To Valve)		Appelez-nous	-
15	7507P400-60		Fitting, Broiler		Appelez-nous	-
16	4005F421-45		Cover, Igniter		Appelez-nous	-
17	74007451		Nut, Mounting   (Replaces: 7103P195-60)				$ 8.05
18	W11233072		Screw   (Replaces: 7101P388-60)			Immediately	$ 12.62
19	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
20	3601F339-45		Baffle, Bake Burner				$ 98.50
21	74011297		Harness, Triple Valve   (Replaces: 5171P603-60)		Appelez-nous	-
22	3601F358-45		Baffle, Broil Burner				$ 218.28
23	WP8273062		Screw, Igniter   (Replaces: 8273062)			Immediately	$ 7.12
24	7507P395-60		Tubing, Bake Burner (with Orifice)				$ 160.07
25	WP74011290		Valve, Bake/broil   (Replaces: 7501P221-60)				$ 295.97
26	7507P396-60		Tubing, Broil Burner (with Orifice)		Appelez-nous	-
27	3801F681-45		Bracket, Orfice				$ 7.82
28	3801F691-51		Bracket, Regulator		Appelez-nous	-
29	7506P378-60		Tubing (right)				$ 81.84
30	7506P379-60		Tubing (left)		Appelez-nous	-
31	7506P417-60		Tubing (center)		Appelez-nous	-
32	7506P428-60		Tubing, Manifold To Valve		Appelez-nous	-
33	7431P067-60		Module, Spark				$ 196.86
34	WPW10068250		Screw, 8-32 X 3/8   (Replaces: 7101P074-60)				$ 3.66
35	WP3387230		Screw, 10ab X .75   (Replaces: 7101P502-60)			Immediately	$ 7.69
36	W11682789		Screw, 10ab X 1/2   (Replaces: 7101P360-60)			Immediately	$ 11.66
37	W10213445		Bracket, Manifold		Appelez-nous	-
38	W10284377		Screw, Manifold Bracket		Appelez-nous	-
39	W10213456		Screw, Valve		Appelez-nous	-
40	WP74008212		Cover,valve Switch   (Replaces: 7724P194-60)				$ 6.88
NI	W10196413		Kit, Lp Gas Conversion Orifice		Appelez-nous	-
NI	5789A602-60		Kit, Lp Conversion Gas				$ 43.94
NI	7003P148-60		Insulator, Orifice Igniter		Appelez-nous	-
