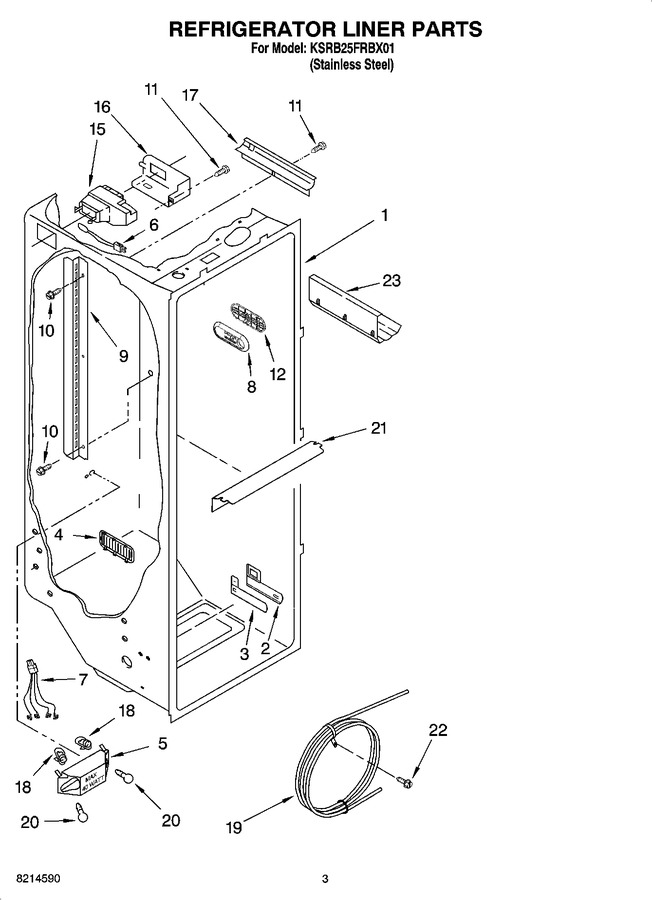

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	2255612		Escutcheon, Meat Pan Control		Appelez-nous	-
3	2301339		Slide Meat Pan Control		Appelez-nous	-
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Lights				$ 62.54
6	WP2188819		Thermistor   (Replaces: 2188819)			Immediately	$ 41.41
7	2311637		Wire Harness, Dual Crisper Lights   (Replaces: 2256037)				$ 126.21
8	2301234		Housing, Door Control		Appelez-nous	-
9	2206273		Shelf Ladder		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489478)				$ 6.98
11	W10759522		Screw (2)   (Replaces: 486298)				$ 6.98
12	2301235		Slide, Door Control		Appelez-nous	-
15	WP2216112		Air Diffuser Assembly   (Replaces: 2216112)			Immediately	$ 322.97
16	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 118.41
17	2150331		Cover, Wiring				$ 21.96
18	4387478		Socket   (Replaces: 2162085)			Immediately	$ 99.14
19	WP2256126		Reservoir   (Replaces: 2217199)				$ 151.97
20	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 10.17
21	2209769		Light Lens		Appelez-nous	-
22	488280		Screw		Appelez-nous	-
23	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 21.24

    View Diagram in Separate Window       Print Part List
