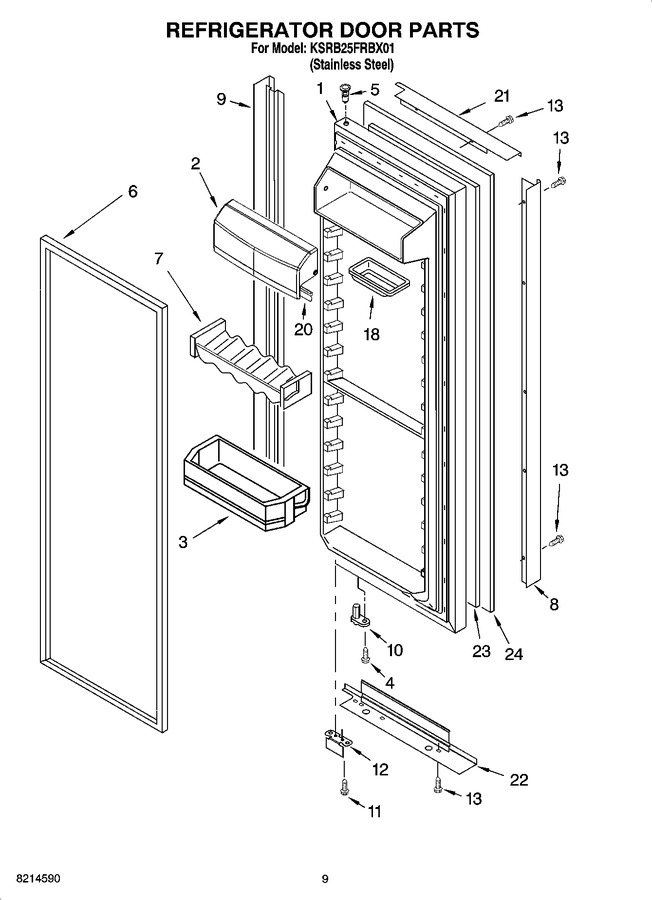

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2219836B | Refrigerator Door (includes Item 6) (black) |
|
- | |||||
| 2 | 2301486 | Compartment Door |
|
- | |||||
| 3 | 2205821K | Shelf Bin (4) |
|
- | |||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 5 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 6.98 | |||||
| 6 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 226.34 | |||||
| 7 | 2193409K | Beverage Holder |
|
- | |||||
| 8 | 2206852S | Handle (stainless Steel) |
|
- | |||||
| 9 | 2220430S | Trim, Hinge Side (stainless Steel) |
|
- | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 5.75 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 12 | 2206630B | Bracket, Door Stop |
|
- | |||||
| 13 | WP3196175 | Screw (stainless Steel) (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 18 | 2165792K | Butter Dish |
|
$ 9.72 | |||||
| 20 | 2159124 | Gasket |
|
- | |||||
| 21 | 2220432S | Trim, Door Top (stainless Steel) |
|
- | |||||
| 22 | 2220437S | Trim, Door Bottom (stainless Steel) |
|
- | |||||
| 23 | 2219803 | Filler Board |
|
- | |||||
| 24 | 2206889S | Panel, Door (stainless Steel) |
|
- |
