02 - Control Panel
03 - Door Parts
04 - Cooktop Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

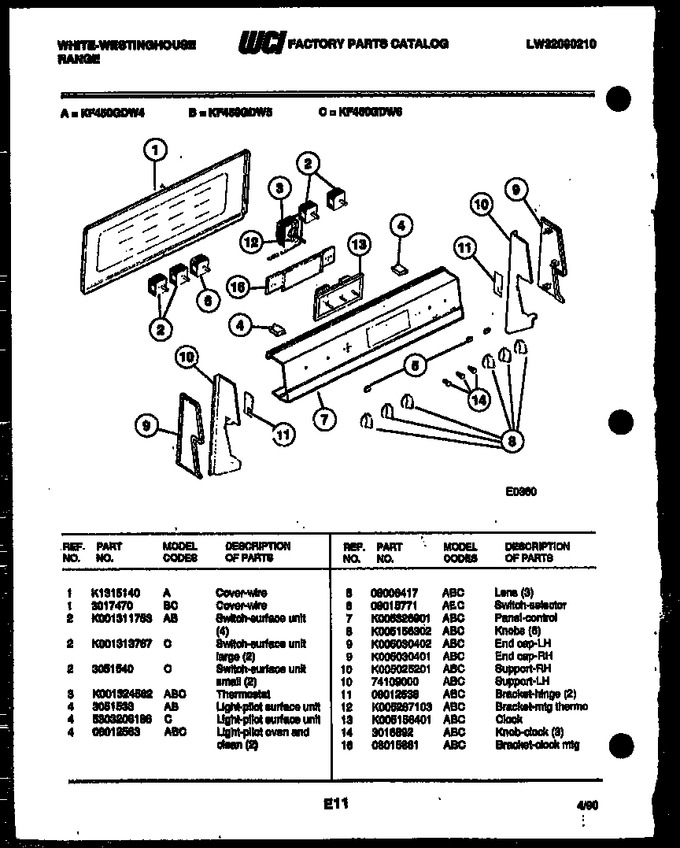

| 1 | 3017470 | Cover - Wire |
|
- | |||||
| 2 | K001313767 | Switch-surface Unit Large (2) |
|
- | |||||
| 2 | 3051540 | Switch-surface Unit Small (2) |
|
- | |||||
| 3 | K001324562 | Thermostat |
|
- | |||||
| 4 | 08012563 | Light-pilot Oven And Clean (2) |
|
- | |||||
| 4 | 5303208186 | Light - Pilot Surface Unit |
|
- | |||||
| 5 | 08006417 | Lens |
|
- | |||||
| 6 | 08015771 | Switch-selector |
|
- | |||||
| 7 | K005326901 | Panel-control |
|
- | |||||
| 8 | K005156302 | Knobs (6) |
|
- | |||||
| 9 | K005030401 | End Cap Rh |
|
- | |||||
| 9 | K005030402 | End Cap Lh |
|
- | |||||
| 10 | 74109000 | Support Lh |
|
- | |||||
| 10 | K005025201 | Support Rh |
|
- | |||||
| 11 | 08012538 | Bracket - Hinge (2) |
|
- | |||||
| 12 | K005267103 | Bracket-mtg Thermo |
|
- | |||||
| 13 | K005156401 | Clock |
|
- | |||||
| 14 | 3016892 | Knob-clock (3) |
|
- | |||||
| 16 | 08015861 | Bracket - Clock Mtg |
|
- |
