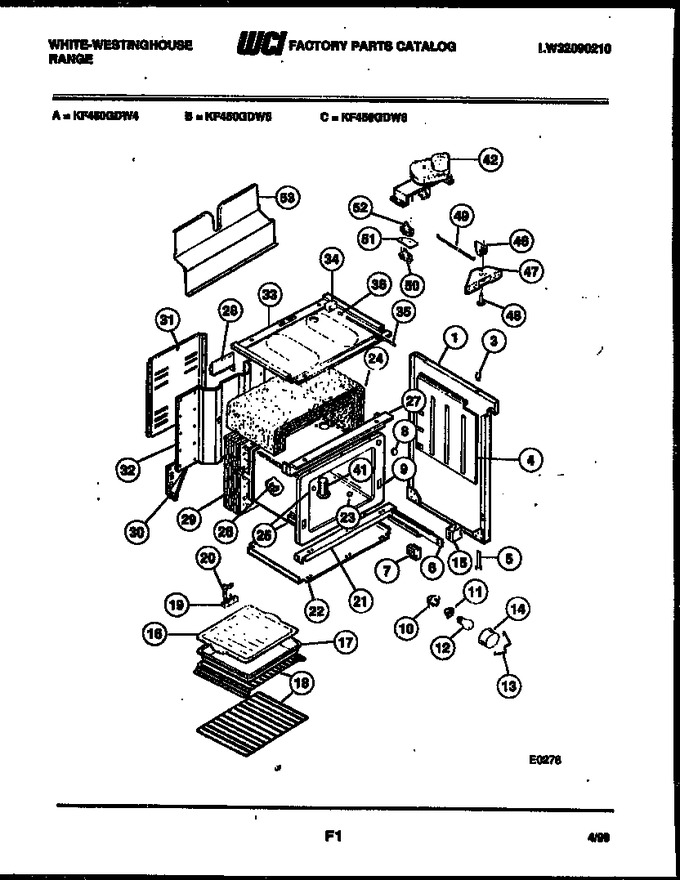

02 - Control Panel
03 - Door Parts
04 - Cooktop Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5305024610 | Side Panel Lh-wheat |
|
- | |||||
| 3 | 08003107 | Bumper - Cooktop (4) |
|
- | |||||
| 4 | 3051632 | Retainer, Insulation (2) |
|
- | |||||
| 5 | 3205294 | Leg, Leveler (4) |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 6 | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 7 | 3051654 | Guide-drawer Frnt (2) |
|
- | |||||
| 8 | 3204817 | Button-plug |
|
- | |||||
| 9 | 3204607 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 3205904 | Retainer - Lens |
|
- | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 15 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3200723 | Pan, Broiler |
|
- | |||||
| 18 | 08014219 | Rack-offset |
|
- | |||||
| 18 | 3131973 | Rack - Regular |
|
- | |||||
| 19 | 3051098 | Terminal-block |
|
- | |||||
| 20 | K1145190 | Strap-ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 24 | 3051630 | Insulation Oven Wrap |
|
- | |||||
| 25 | 3051796 | Plug Button - Thermo Bulb Hole |
|
- | |||||
| 26 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 27 | 5303208390 | Channel-oven Support Upper |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 3051630 | Insulation-oven Back |
|
- | |||||
| 30 | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Cover - Wire |
|
- | |||||
| 32 | 3017535 | Back - Range |
|
- | |||||
| 33 | 08012542 | Panel - Subtop |
|
- | |||||
| 34 | 08003081 | Switch - Door |
|
- | |||||
| 35 | 08007445 | Push Rod |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 41 | 08012574 | Tube-oven Vent |
|
- | |||||
| 42 | 08015743 | Motor-latch |
|
- | |||||
| 46 | 3051648 | Latch-door |
|
- | |||||
| 47 | 3051647 | Housing-door Latch |
|
- | |||||
| 48 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 5303051740 | Switch-lower |
|
- | |||||
| 51 | 08003090 | Insulator |
|
- | |||||
| 52 | 5301167190 | Switch - Upper |
|
$ 62.40 | |||||
| 53 | 3206095 | Shield-wire |
|
- | |||||
| *75272 | 3934063 | Anti-tip Kit |
|
- | |||||
| 33A | 3051785 | Washer-padded (3) (non-illustrated) |
|
- |
