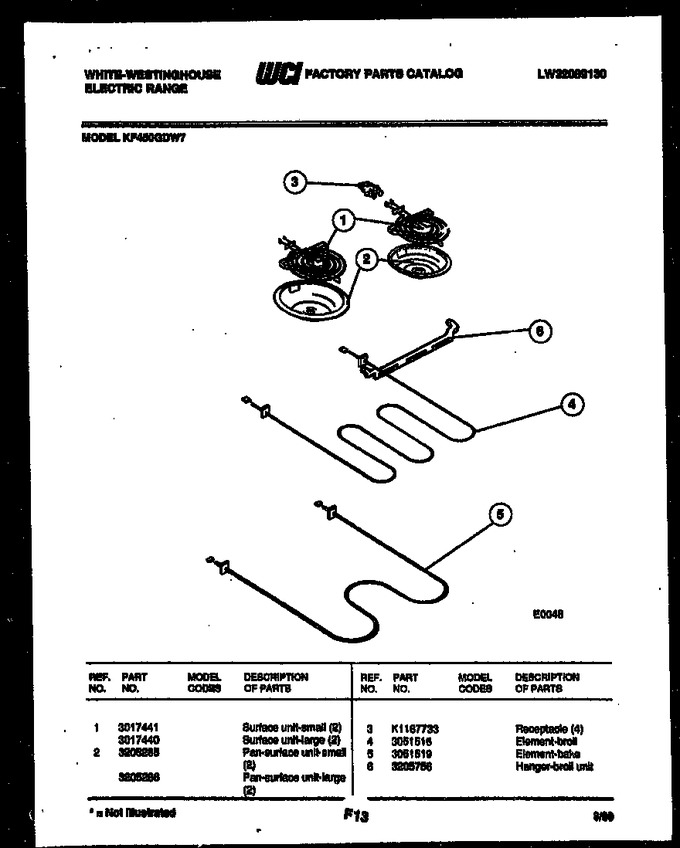

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017441 | Surface Unit-small (2) |
|
- | |||||
| 2 | 3205285 | Pan-surface Unit Small (2) |
|
- | |||||
| 3 | K1167733 | Receptacle (4) |
|
- | |||||
| 4 | 3051516 | Element - Broil |
|
- | |||||
| 5 | 3051519 | Element - Bake |
|
- | |||||
| 6 | 3205756 | Hanger - Broil Unit |
|
- | |||||
| 1A | 3017440 | Surface Unit-large (2) |
|
- | |||||
| 2A | 3205286 | Pan-surface Unit-large (2) |
|
- |
