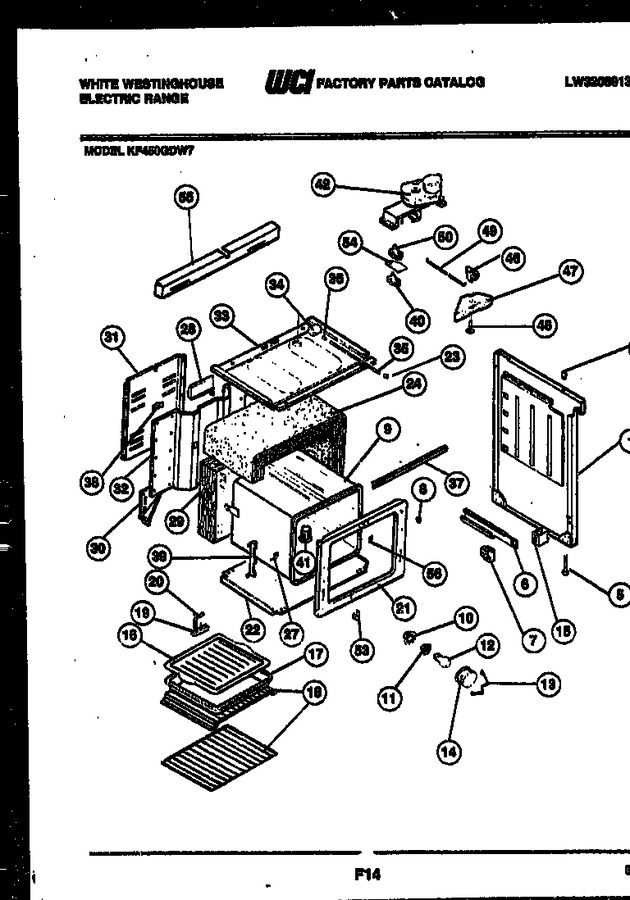

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | K005024607 | Side Panel Rh-avoc |
|
- | |||||
| 3 | 3051632 | Retainer, Insulation (2) |
|
- | |||||
| 3 | 08003107 | Bumper - Cooktop (4) |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 7 | 3051654 | Guide, Drawer Front (2) |
|
- | |||||
| 8 | 3204817 | Plug, Button 3/4`` (2) |
|
- | |||||
| 9 | 3206079 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 3205904 | Retainer - Lens |
|
- | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 15 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3205232 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack - Regular |
|
- | |||||
| 19 | 3051098 | Terminal-block |
|
- | |||||
| 20 | K1145190 | Strap-ground |
|
- | |||||
| 21 | 5303207390 | Frame-front |
|
- | |||||
| 22 | 3206275 | Panel, Bottom |
|
- | |||||
| 23 | 3051251 | Cover, Rod End |
|
- | |||||
| 24 | 3051630 | Insulation Oven Wrap |
|
- | |||||
| 27 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 28 | 3051634 | Channel, Air |
|
- | |||||
| 29 | 3051630 | Insulation-oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Wire Cover |
|
- | |||||
| 32 | 3205757 | Back, Range |
|
- | |||||
| 33 | 08012542 | Panel - Subtop |
|
- | |||||
| 34 | 08003081 | Switch - Door |
|
- | |||||
| 35 | 08007445 | Push Rod Switch |
|
- | |||||
| 36 | 08007444 | End-push Rod |
|
- | |||||
| 37 | 5033207391 | Support Sub-top |
|
- | |||||
| 38 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 39 | 3201631 | Hinge - Assy (2) |
|
$ 58.22 | |||||
| 40 | 5308006582 | Switch-limit Lower |
|
- | |||||
| 41 | 08012574 | Vent-tube |
|
- | |||||
| 42 | 08015743 | Motor-latch |
|
- | |||||
| 46 | 3202387 | Latch, Door |
|
- | |||||
| 47 | 3051647 | Housing-door Latch |
|
- | |||||
| 48 | 5308012004 | Axle |
|
$ 8.29 | |||||
| 49 | 3051649 | Tie Bar |
|
- | |||||
| 50 | 3202114 | Switch-limit Upper |
|
- | |||||
| 53 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 54 | 08003090 | Shield-wire |
|
- | |||||
| 55 | 3206095 | Shield-wire |
|
- | |||||
| 56 | 3202082 | Cover Seam |
|
- | |||||
| *27181 | 3934063 | Anti-tip Kit |
|
- | |||||
| *27181 | 530009126 | Clip Capillary |
|
- | |||||
| 18A | 08014219 | Rack-offset |
|
- | |||||
| 1A | K005024608 | Side Panel Lh-avoc |
|
- | |||||
| 30A | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
