SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Door Parts
05 - Door Parts

Diagram for 06 - Drawer And Rack Parts, Optional Parts (not Included)
06 - Drawer And Rack Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10156248 Installation Instructions Appelez-nous -
1 W10129630 Owners Manual Appelez-nous -
2 WP3191898 Cap, Burner (lr)   (Replaces: W10154098) Special Order $ 60.86

2 WP74007415 Cap, Burner (rr & Lf)   (Replaces: 74007415) Special Order $ 87.35

2 W10154101 Cap, Burner (rf) Special Order $ 55.09

3 74008761 Spacer, Snap-in Special Order $ 7.55

4 WPW10406283 Burner (rr & Lf)   (Replaces: 74009900) Special Order $ 66.87

4 WPW10406878 Burner (rf)   (Replaces: 74007413) In-Stock Immediately $ 92.12

4 WPW10406243 Burner (lr)   (Replaces: 74007411) In-Stock Immediately $ 33.50

5 74009114 Cooktop Appelez-nous -
6 74011112 Panel, Manifold Appelez-nous -
7 74009773 Knob, Control (4) Special Order $ 17.64

8 74009120 Grate, Burner (2) Special Order $ 238.73

9 WP3368921 Screw (8)   (Replaces: 7101P685-60) In-Stock Immediately $ 6.42

10 W11233072 Screw   (Replaces: 74001530) In-Stock Immediately $ 12.62


    View Diagram in Separate Window     Print Icon   Print Part List

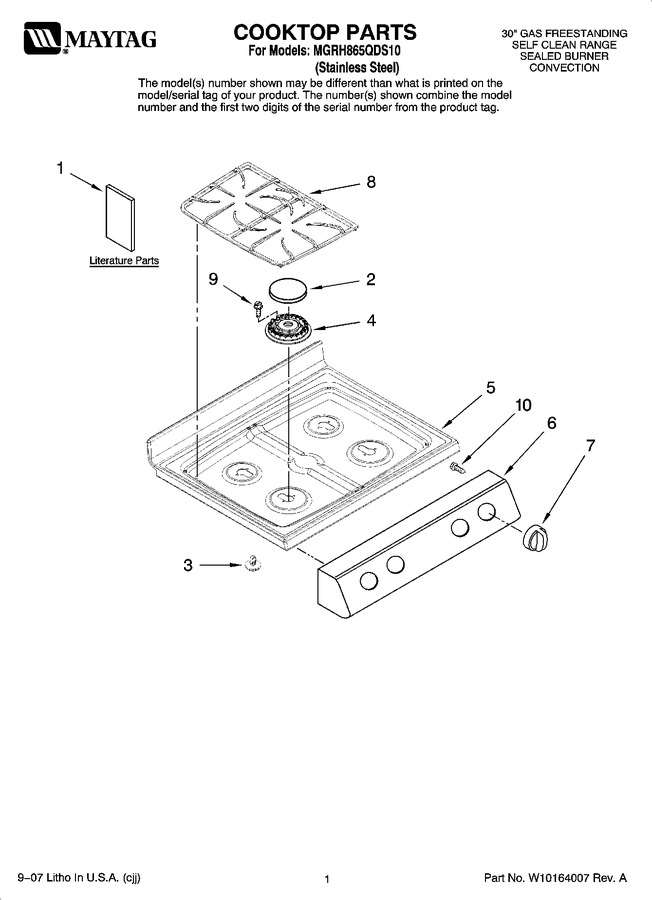

Diagram for MGRH865QDS10
