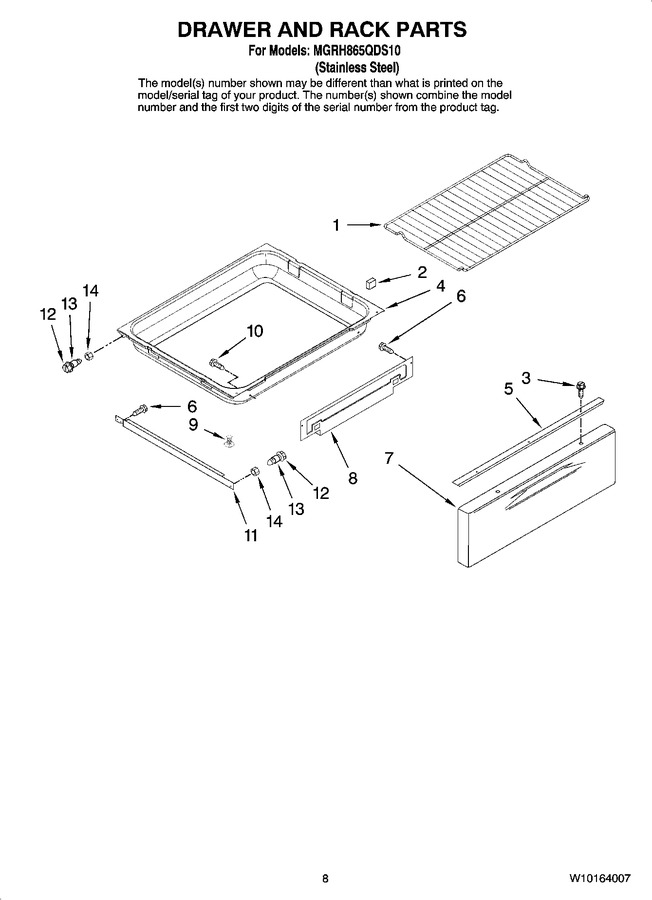

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74008763 | Rack, Oven (2) (Replaces: 74008763) |
|
$ 192.14 | |||||
| 2 | WP74005546 | Spacer, Bumper (Replaces: 74005546) |
|
$ 9.48 | |||||
| 3 | W11233072 | Screw (Replaces: 74009268) |
|
Immediately | $ 12.62 | ||||
| 4 | WP3405F037-80 | Drawer (Replaces: 74008877) |
|
$ 304.98 | |||||
| 5 | 74008909 | Handle, Drawer |
|
$ 32.96 | |||||
| 6 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 7 | 7760P228-60 | Panel, Drawer Frnt |
|
- | |||||
| 8 | 74009519 | Panel, Inner |
|
- | |||||
| 9 | 74008688 | Drawer, Stop |
|
$ 5.02 | |||||
| 10 | WP7101P072-60 | Screw (Replaces: 7101P072-60) |
|
$ 6.77 | |||||
| 11 | 74008687 | Rail, Drawer |
|
- | |||||
| 12 | 74005231 | Shaft, Storage Drawer Roller |
|
$ 9.23 | |||||
| 13 | WP74004078 | Roller, Drawer (Replaces: 74004078) |
|
Immediately | $ 10.70 | ||||
| 14 | WP488130 | Nut (Replaces: 7103P082-60) |
|
$ 6.27 | |||||
| NI | 261582 | Grease |
|
- | |||||
| NI | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| NI | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| NI | 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | ||||
| NI | 511873 | Paint, Touch-up (1/2oz.) White Porcelain (2 Oz.) |
|
$ 44.36 | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) ( White) |
|
Immediately | $ 34.39 | ||||
| NI | 285006 | Paint, Pressurized Spray(12 Oz.) (black) (Replaces: 350939) |
|
Immediately | $ 51.34 | ||||
| NI | 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | ||||
| NI | 350942 | Paint, Pressurized Spray (12 Oz.) (primer) (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| NI | 799344 | Paint, Bulk (1 Qt.) (white (uncut)) |
|
$ 237.46 | |||||
| NI | 4392900 | Paint, Bulk (1 Qt.) (biscuit (uncut) |
|
- | |||||
| NI | 799340 | Paint, Bulk (1 Qt.) (black (uncut) |
|
- | |||||
| NI | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| NI | W10129628 | Harness, Gas |
|
- | |||||
| NI | 8019P026-60 | Clip, Harness (Replaces: 74006784) |
|
- | |||||
| NI | WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 4.29 | |||||
| NI | 4392901 | Paint, Pressurized Spray (12 Oz) (biscuit) |
|
- | |||||
| NI | 8019P013-60 | Clip, Wire (Replaces: 74006811) |
|
$ 13.46 | |||||
| NI | 72032 | Paint, Touch-up (1/2oz.) (black) |
|
Immediately | $ 18.69 | ||||
| NI | 72017 | Paint, Touch-up (1/2oz.) White |
|
Immediately | $ 11.07 | ||||
| NI | 242828 | Wire, Black 12 Ga. 150 C |
|
- | |||||
| NI | 242821 | Wire, Blue 14 Ga. 150 C |
|
- | |||||
| NI | 242822 | Wire, Brown 14 Ga. 150 C |
|
- | |||||
| NI | 242830 | Wire, Brown 14 Ga. 200 C |
|
- | |||||
| NI | 242823 | Wire, Green 14 Ga. 150 C |
|
- | |||||
| NI | 242824 | Wire, Orange 14 Ga. 150 C |
|
- | |||||
| NI | 242825 | Wire, Red 14 Ga. 150 C |
|
- | |||||
| NI | 242831 | Wire, Red 14 Ga. 200 C |
|
$ 342.23 | |||||
| NI | 242827 | Wire, Yellow 14 Ga. 150 C |
|
- | |||||
| NI | 799832 | Kit, Porcelain Repair (white) |
|
- | |||||
| NI | 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 |
