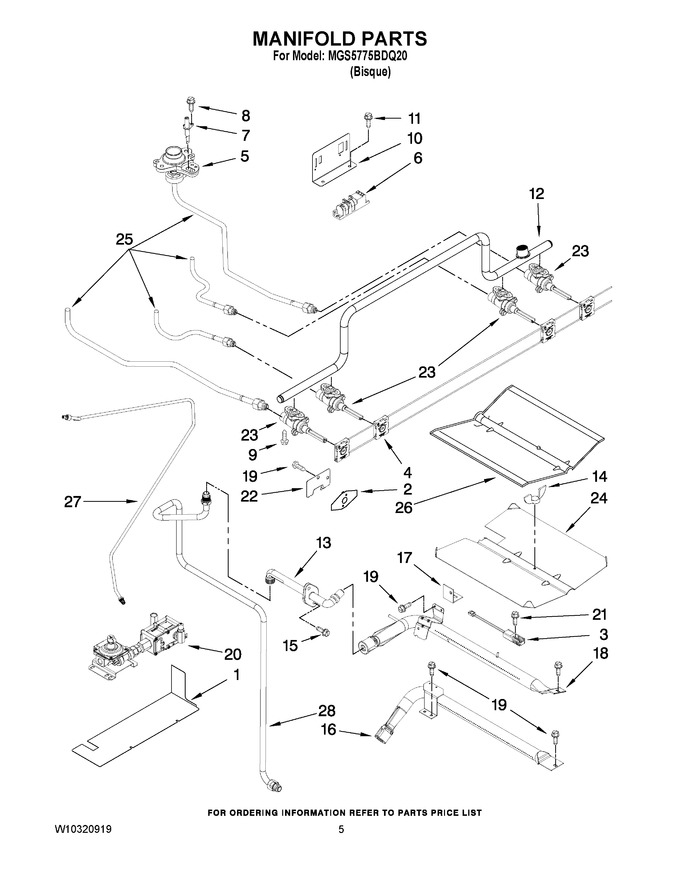

04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10271712 | Cover, Bnr Valve |
|
- | |||||
| 2 | 3605F269-45 | Plate, Broil Fitting |
|
- | |||||
| 3 | 74007498 | Ignitor, Electric Ignition (Replaces: 7432P106-60) |
|
Immediately | $ 78.40 | ||||
| 4 | 7450P006-60 | Harness, Valve Includes Switches |
|
- | |||||
| 5 | 7527P083-60 | Orifice, Holder (9.2k (2) Lf,rr) |
|
- | |||||
| 5 | WPW10407680 | Orifice, Holder (5k (1) Lr) (Replaces: 7527P084-60) |
|
$ 98.65 | |||||
| 5 | WPW10407678 | Orifice, Holder (16k (1) Rf) (Replaces: 7527P081-60) |
|
$ 108.04 | |||||
| 6 | WP7431P064-60 | Spark, Module (Replaces: 7431P064-60) |
|
$ 278.09 | |||||
| 7 | WP8523793 | Ignitor (4) (Replaces: 7432M126-60) |
|
Immediately | $ 36.15 | ||||
| 8 | WP8273062 | Screw, Ignitor (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 9 | W11233072 | Support, Screw (4) (Replaces: 7101P338-60) |
|
Immediately | $ 12.62 | ||||
| 10 | 3807F752-45 | Support, Spark Mod |
|
$ 27.55 | |||||
| 11 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 12 | 7513P472-60 | Pipe, Manifold |
|
- | |||||
| 13 | WP74010901 | Fitting, Broil (Replaces: 7507P407-60) |
|
$ 75.29 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 6.37 | |||||
| 15 | WP3387230 | Screw (Replaces: 7101P502-60) |
|
Immediately | $ 7.69 | ||||
| 16 | 7505P254-60 | Burner, Bake |
|
- | |||||
| 17 | 3807F480-45 | Support, Bake Bnr |
|
$ 17.01 | |||||
| 18 | 7505P293-60 | Burner, Broil |
|
$ 89.91 | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.26 | |||||
| 20 | W10130932 | Valve/regulator (Replaces: 7501P231-60) |
|
Immediately | $ 334.23 | ||||
| 21 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 22 | 4005F421-45 | Cover,ignitor Wire |
|
- | |||||
| 23 | 7502P548-60 | Valve, Burner (rf) |
|
- | |||||
| 23 | 7502P471-60 | Valve, Burner (lf/rr) |
|
- | |||||
| 23 | 7502P470-60 | Valve, Burner (lr) |
|
- | |||||
| 24 | 3601F307-45 | Baffle, Broil |
|
$ 200.26 | |||||
| 25 | 7506P439-60 | Tube, Burner (rf) |
|
- | |||||
| 25 | 7506P440-60 | Tube, Burner (lf) |
|
- | |||||
| 25 | 7506P441-60 | Tube, Burner (rr) |
|
- | |||||
| 25 | 7506P442-60 | Tube, Burner (lr) |
|
- | |||||
| 26 | 3601F239-45 | Baffle, Bake |
|
- | |||||
| 27 | 7506P443-60 | Tubing, Supply |
|
- | |||||
| 28 | 7506P301-60 | Tubing, Broil Fitting |
|
- | |||||
| NI | 7507P405-60 | Spuds, Lp Gas |
|
- |
