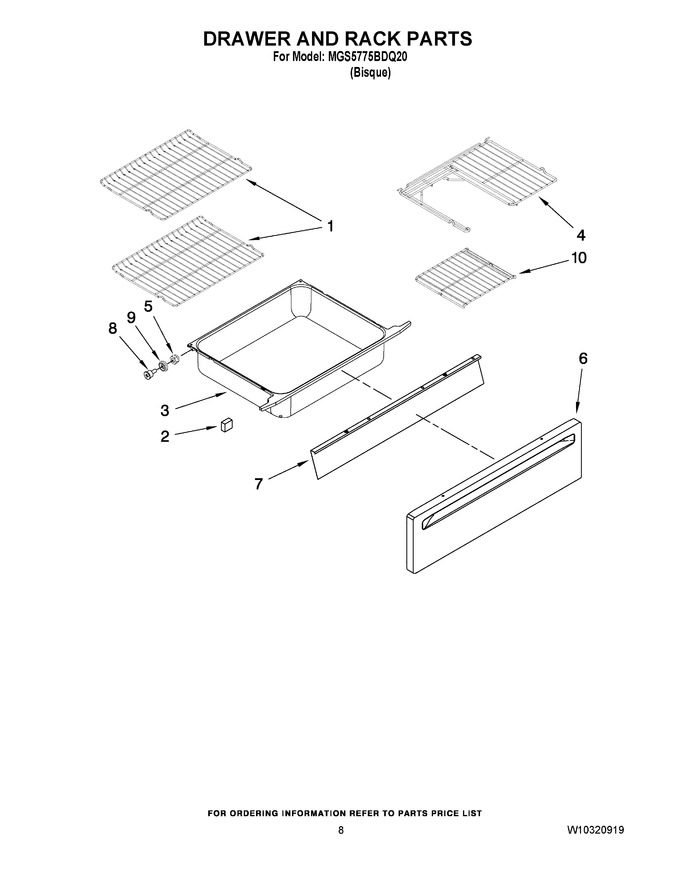

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7801P173-60 | Rack, Oven (2) |
|
$ 55.72 | |||||
| 2 | WP74005546 | Spacer, Rubber (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 3 | WP3405F037-80 | Drawer, Service (Replaces: 3405F033-80) |
|
$ 304.98 | |||||
| 4 | W10273862 | Rack, Oven (half) |
|
$ 56.22 | |||||
| 5 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) |
|
$ 4.00 | |||||
| 6 | 2416F059-78 | Panel,drawer Front (bisque) |
|
- | |||||
| 7 | 2404F030-51 | Lining, Drawer |
|
- | |||||
| 8 | WP74004078 | Roller Drawer (2) (Replaces: 8014P022-60) |
|
Immediately | $ 10.70 | ||||
| 9 | 7118P032-60 | Shaft, Roller (2) |
|
- | |||||
| 10 | W10275560 | Rack, Oven Half (insert) |
|
$ 69.52 |
