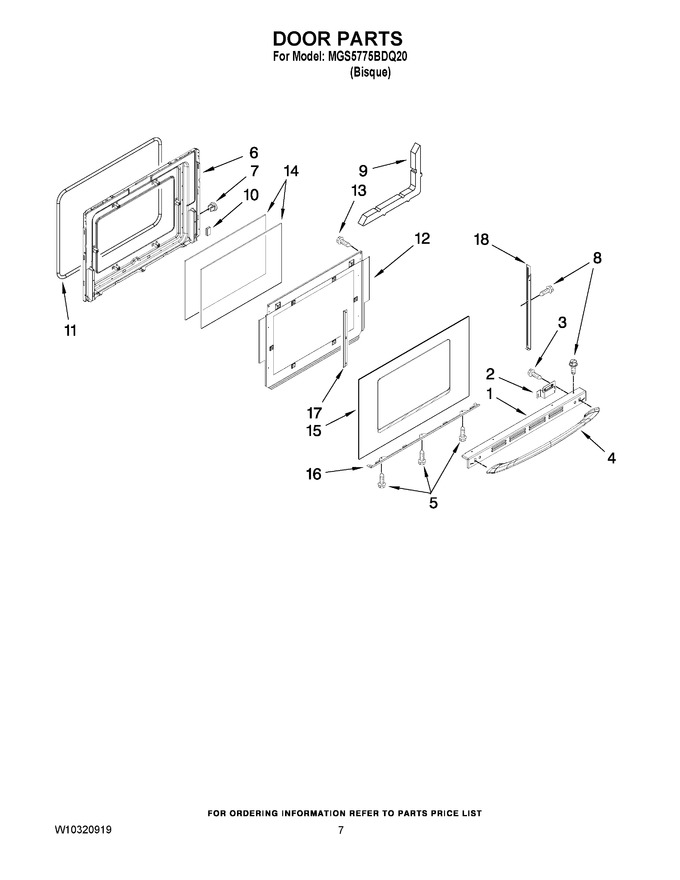

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3608F141-78 | Trim, Door Top (bisque) |
|
- | |||||
| 2 | 3801F831-45 | Bracket, Handle (right) |
|
$ 19.17 | |||||
| 2 | 3801F832-45 | Bracket, Handle (left) |
|
$ 19.12 | |||||
| 3 | WP74006515 | Screw, Handle (Replaces: 7101P681-60) |
|
$ 7.29 | |||||
| 4 | WP74011778 | Handle, Door (bisque) (Replaces: 7701P518-60) |
|
$ 226.31 | |||||
| 5 | WP74009541 | Screw (glass Support) (Replaces: 7101P637-60) |
|
$ 6.26 | |||||
| 6 | 2402W312-19 | Liner, Door |
|
$ 144.50 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 7103P141-60) |
|
Immediately | $ 9.91 | ||||
| 8 | 7101P208-60 | Screw, Trim |
|
$ 11.92 | |||||
| 9 | 7002P246-60 | Insulation, Door |
|
$ 58.49 | |||||
| 10 | WP74005546 | Spacer (Replaces: 8010P130-60) |
|
$ 9.48 | |||||
| 11 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 77.61 | ||||
| 12 | 3601F373-51 | Baffle, Retainer |
|
$ 244.22 | |||||
| 13 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 14 | 74003645 | Glass, Inner (2) (Replaces: 7902P436-60) |
|
Immediately | $ 162.53 | ||||
| 15 | 7902P737-60 | Glass, Door (bisque) |
|
- | |||||
| 16 | 3807F708-78 | Trim, Door Bottom (bisque) |
|
$ 65.47 | |||||
| 17 | 3801F886-51 | Bracket, Glass |
|
$ 38.25 | |||||
| 18 | 3608F116-78 | Trim, Door Side (bisque, Right) |
|
- | |||||
| 18 | 3608F117-78 | Trim, Door Side (bisque, Left) |
|
$ 49.72 |
