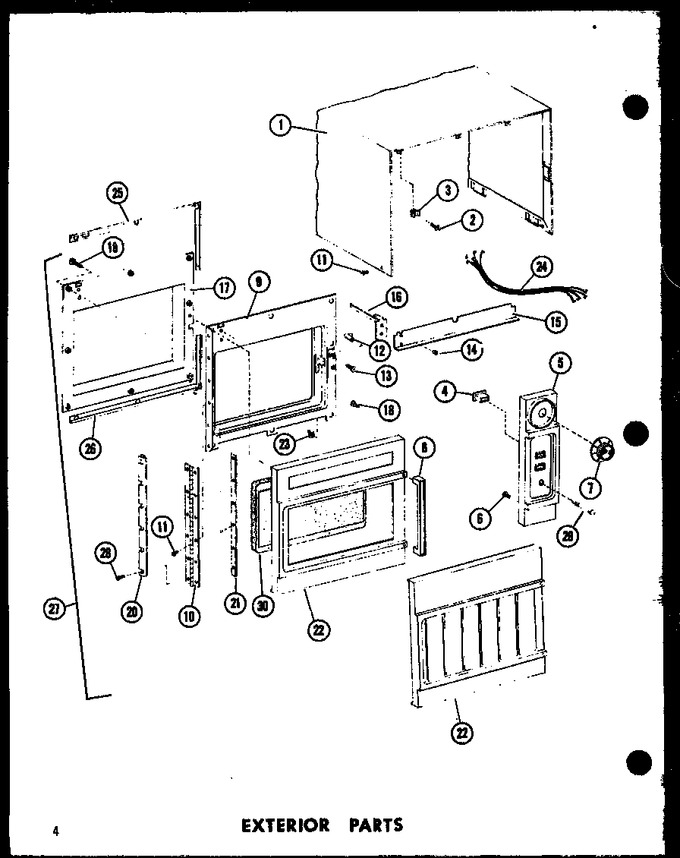

01 - Exterior Parts


02 - Interior Parts


03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7189404		Wrapper-oc		Appelez-nous	-
2	M0213516		Screw K		Appelez-nous	-
3	A3211801		Spacer, Speed Nut		Appelez-nous	-
4	C3695902		Button-stop		Appelez-nous	-
4	C3695901		Button-start		Appelez-nous	-
5	D7290301		Escutcheon-control		Appelez-nous	-
6	M0253418		Screw		Appelez-nous	-
7	C8765701		Knob		Appelez-nous	-
8	C3695701		Handle, Door		Appelez-nous	-
9	D7188303		Door Assy		Appelez-nous	-
10	B5742301		Door Hinge		Appelez-nous	-
11	M0230015		Screw		Appelez-nous	-
12	B5705501		Latch-door		Appelez-nous	-
13	M0228016		Screw		Appelez-nous	-
14	A4539602		Pop Rivet		Appelez-nous	-
15	C8707401		Bracket-door A		Appelez-nous	-
16	R0157117		Door Arm Assembly		Appelez-nous	-
17	D7210801		Inner Door		Appelez-nous	-
18	M0253719		Screw-handle		Appelez-nous	-
19	M0253717		Screw		Appelez-nous	-
19	M0201004		Screw		Appelez-nous	-
20	C3695201		Support-hinge		Appelez-nous	-
21	A3223301		Tap Strip-door		Appelez-nous	-
22	D7187804		Door-outer		Appelez-nous	-
23	M0100801		Strike,door Catch		Appelez-nous	-
24	D7293901		Wiring Harness		Appelez-nous	-
25	C8707901		Trim		Appelez-nous	-
26	C8708001		Trim		Appelez-nous	-
27	D7224801		Door Assy		Appelez-nous	-
28	M0218116		Screw		Appelez-nous	-
