01 - Exterior Parts


02 - Interior Parts

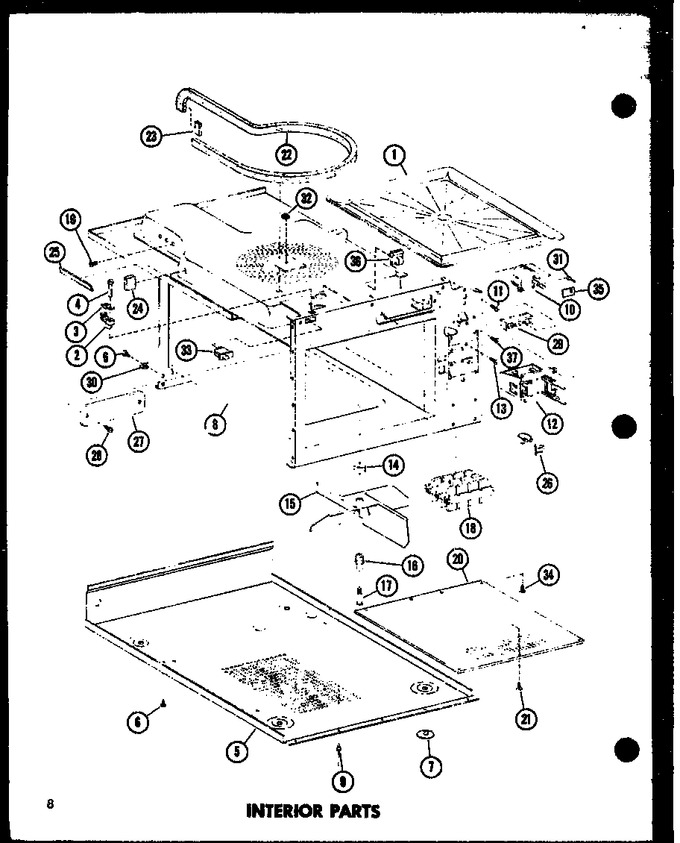

03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7191101		Oven Tray		Appelez-nous	-
2	C3696903		Bushing		Appelez-nous	-
3	C3696902		Bushing		Appelez-nous	-
4	A3211102		Pin-door Stop		Appelez-nous	-
5	C3694403		Base Pan Wld		Appelez-nous	-
6	M0230015		Screw		Appelez-nous	-
7	M0310601		Plug		Appelez-nous	-
8	D7277707		Oven Cavity		Appelez-nous	-
9	M0550701		Pop Rivet		Appelez-nous	-
10	C8705201		Timer		Appelez-nous	-
11	M0202502		Screw		Appelez-nous	-
12	C3695502		Switch-start,stop		Appelez-nous	-
13	M0241205		Screw		Appelez-nous	-
14	B5704202		Bushing		Appelez-nous	-
15	C8720802		Fan Blade-stirrer		Appelez-nous	-
16	A3214801		Bearing		Appelez-nous	-
17	A3214903		Shoulder Screw		Appelez-nous	-
18	C3694501		Filter-wave Guide		Appelez-nous	-
19	M0253504		Screw		Appelez-nous	-
20	D7206602		Grease Shield K		Appelez-nous	-
21	M0230015		Screw		Appelez-nous	-
22	A3030308		Gasket		Appelez-nous	-
23	A3030323		Gasket, Cond. Base Pan Flange-		Appelez-nous	-
24	A3030333		Gasket (1=1ft.)		Appelez-nous	-
25	A3030302		Gasket		Appelez-nous	-
26	M0100702		Catch, Door Strike		Appelez-nous	-
30	M0320901		Terminal		Appelez-nous	-
31	R0191014		Spring Clip		Appelez-nous	-
32	M0258301		Nut A		Appelez-nous	-
33	B5674702		Switch-sensing		Appelez-nous	-
34	M0130101		Clip K		Appelez-nous	-
35	A3236701		Insulation-timer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
