01 - Exterior Parts


02 - Interior Parts

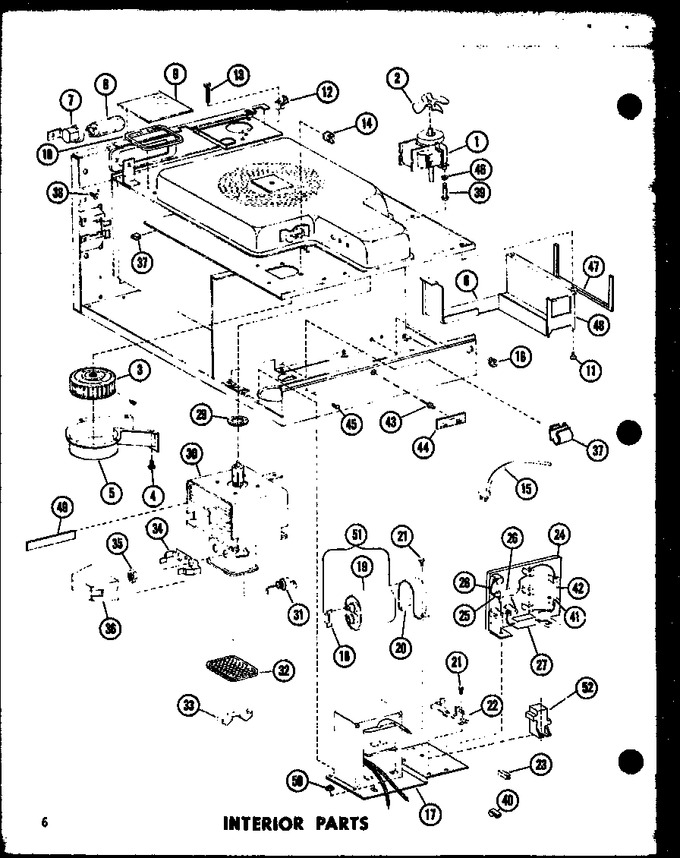

03 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8738501		Motor		Appelez-nous	-
2	B5706701		Fan Blade		Appelez-nous	-
3	B5602203		Blower Wheel		Appelez-nous	-
4	M0218116		Screw		Appelez-nous	-
5	C8700101		Blower Housing		Appelez-nous	-
6	D7191801		Duct-outlet		Appelez-nous	-
11	M0130101		Clip K		Appelez-nous	-
12	A3214201		Switch-preform		Appelez-nous	-
13	M0227525		Screw A-k		Appelez-nous	-
14	B5665804		Thermal Cutout		Appelez-nous	-
15	B5703502		Power Cord		Appelez-nous	-
16	M0370001		Strain Relief		Appelez-nous	-
17	D7192001		Transformer		Appelez-nous	-
18	M0305202		Resistor A		Appelez-nous	-
19	C3679502		Capacitor Assy		Appelez-nous	-
20	A3197101		Strap-capacitor A		Appelez-nous	-
21	M0216517		Screw		Appelez-nous	-
22	B5685802		Diode		Appelez-nous	-
23	M0325301		Insulator, Term. K		Appelez-nous	-
24	B5730901		Terminal Board		Appelez-nous	-
25	M0321701		Sleeve		Appelez-nous	-
26	M0305009		Resistor A		Appelez-nous	-
27	M0305204		Resistor		Appelez-nous	-
28	M0308102		Fuse		Appelez-nous	-
29	A3185102		Gasket, Magnetron		Appelez-nous	-
30	D7192401		Assembly, Magnetron		Appelez-nous	-
31	A3148801		Capacitor K		Appelez-nous	-
32	B5647901		Cover Cap Box K		Appelez-nous	-
33	A3145401		Bale Strap K		Appelez-nous	-
34	B5655902		Clip K		Appelez-nous	-
35	M0281901		Hex Nut		Appelez-nous	-
36	B5656001		Shield Hv K		Appelez-nous	-
37	M0118801		Clip		Appelez-nous	-
38	WP90767		Screw   (Replaces: M0216529)			Immediately	$ 7.04
39	M0202642		Screw		Appelez-nous	-
40	M0325501		Insulator, Pod K		Appelez-nous	-
41	M0308101		Fuse				$ 9.87
42	M0305402		Resistor Fuse Kit		Appelez-nous	-
43	A4539601		Pop Rivet		Appelez-nous	-
44	B5738501		Seal K		Appelez-nous	-
45	WP59002061		Screwxxx   (Replaces: M0216616)				$ 6.98
46	M0272605		Washer		Appelez-nous	-
47	A3030303		Gasket (per Foot)		Appelez-nous	-
48	B5748001		Cap-duct Outlet		Appelez-nous	-
49	M0275121		Tape Alum		Appelez-nous	-
50	WP487939		Nut   (Replaces: M0282015)				$ 6.95
51	R0160002		Capacitor Assy		Appelez-nous	-
NI	C3655836		Jumper Wire		Appelez-nous	-
NI	C3655822		Jumper Wire		Appelez-nous	-
NI	C3655809		Jumper Wire		Appelez-nous	-
