SELECT A DIAGRAM

01 - Control Panel (dryer)


02 - Control Center (dryer)


03 - Cabinet-front (dryer)


04 - Door (dryer)


05 - Cabinet-rear (dryer)


06 - Tumbler (dryer)


07 - Heater (dryer)


08 - Motor Drive (dryer)


09 - Cabinet-front (washer)


10 - Door & Front Panel (washer)


11 - Cabinet-rear (washer)


12 - Outer Tub & Motor(washer)


13 - Spinner Assembly & Outer Tub Cover(wash)


14 - Base (washer)


15 - Door Shroud & Door Latch Assembly (wash)


16 - Wiring Information (mle19pddgw)


17 - Supplemental Information

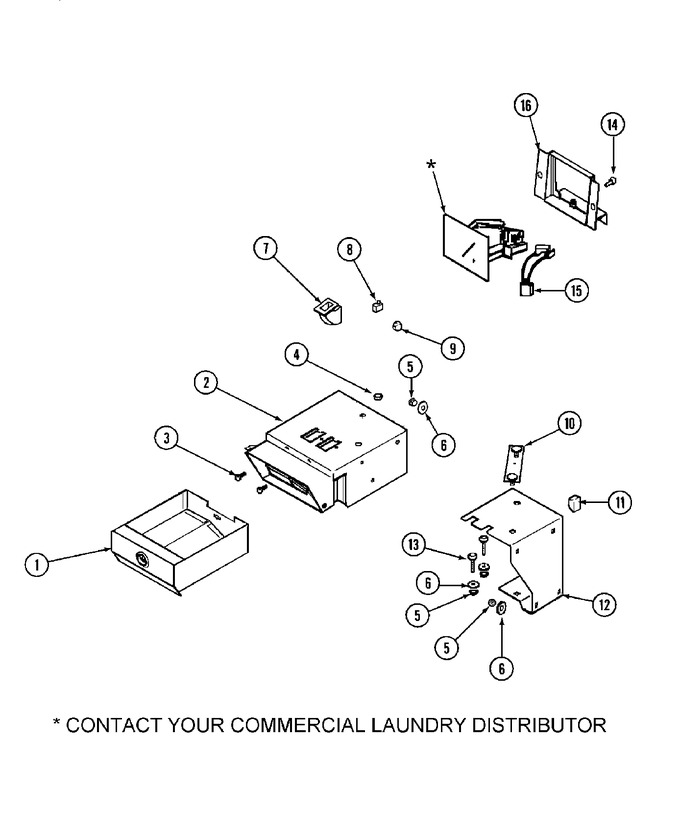

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y33001983		Box, Coin (wht)	11	Appelez-nous	-
002	Y33001986		Vault, Coin (wht)	11	Appelez-nous	-
003	WP694091		Screw, Coin Drop Bracket   (Replaces: 33002683)	11			$ 6.47
004	WP62739		Nut, Coin Vault   (Replaces: Y052740)	11			$ 6.85
005	Y052734		Nut, Carrage Bolts & Bracket	11	Appelez-nous	-
006	WP312535		Washer, Vault Mounting Brk.   (Replaces: 312535)	11		Immediately	$ 10.25
006	NLA		Washer, Vault Mounting Brk.	11	Appelez-nous	-
007	314635		Chute, Coin	11	Appelez-nous	-
008	22002536		Switch, Vault	11	Appelez-nous	-
009	NLA		Nut, Cage	11	Appelez-nous	-
010	22001810		Strap, Mounting	11	Appelez-nous	-
011	33001989		Retainer, Wire	11	Appelez-nous	-
012	33001990		Bracket, Mounting Vault	11	Appelez-nous	-
013	W11753795		Bolt, Carriage   (Replaces: 33001991)	11			$ 6.58
014	W11684507		Screw, Coin Drop Mounting Brk.   (Replaces: 212707)	11			$ 12.23
014	910181		Washer, Lock	11	Appelez-nous	-
015	WPW10247389		Switch Assy., Optic   (Replaces: 22001965)	11		Immediately	$ 104.31
015	WP3395530		Screw, Optic Switch   (Replaces: 314665)	11			$ 6.93
016	33001992		Bracket, Coin Drop Mount.	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
