SELECT A DIAGRAM

01 - Control Panel (dryer)


02 - Control Center (dryer)


03 - Cabinet-front (dryer)


04 - Door (dryer)


05 - Cabinet-rear (dryer)


06 - Tumbler (dryer)


07 - Heater (dryer)


08 - Motor Drive (dryer)


09 - Cabinet-front (washer)


10 - Door & Front Panel (washer)


11 - Cabinet-rear (washer)


12 - Outer Tub & Motor(washer)


13 - Spinner Assembly & Outer Tub Cover(wash)


14 - Base (washer)


15 - Door Shroud & Door Latch Assembly (wash)


16 - Wiring Information (mle19pddgw)


17 - Supplemental Information

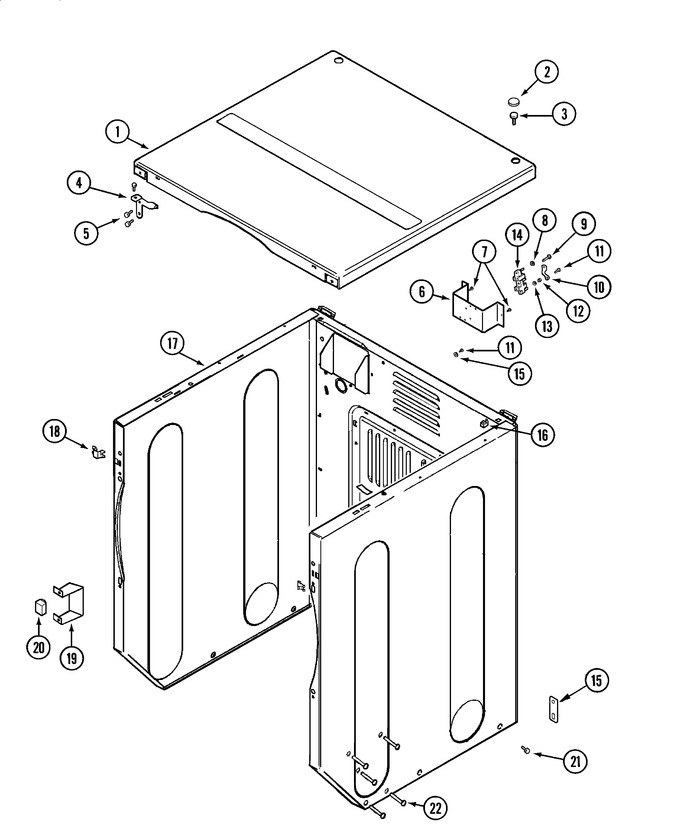

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33002124		Cover, Top (wht)	11	Appelez-nous	-
002	33001997		Plug, Hole	11	Appelez-nous	-
003	22001883		Screw, Top Cover	11	Appelez-nous	-
004	33001998		Bracket, Top Cover (lt)	11	Appelez-nous	-
004	33001999		Bracket, Top Cover (rt)	11	Appelez-nous	-
005	W11573574		Screw, Top Cover Bracket   (Replaces: 22001995)	11		Immediately	$ 12.62
006	NLA		Bracket, Terminal Block----na	11	Appelez-nous	-
007	W11573574		Screw, Terminal Block Bracket   (Replaces: 22001995)	11		Immediately	$ 12.62
008	Y311270		Washer, Terminal Block	11			$ 8.75
009	W11164114		Screw, Terminal Block   (Replaces: Y312209)	11			$ 3.76
010	Y312184		Strap, Ground	11	Appelez-nous	-
011	NLA		Screw, Ground Strap	11	Appelez-nous	-
012	WP112432		Nut, Terminal Block   (Replaces: 311484)	11			$ 7.16
013	WP311093		Washer, Brass   (Replaces: 311093)	11			$ 7.25
014	315471		Retainer, Wire	11	Appelez-nous	-
014	W11705611		Block, Terminal   (Replaces: 33001244)	11			$ 87.34
014	33002182		Bracket, Terminal Block	11	Appelez-nous	-
014	NLA		Screw, Terminal Block	11	Appelez-nous	-
015	33002060		Bracket, Security	11	Appelez-nous	-
016	WP22001502		Fastener, U-nut   (Replaces: 22001502)	11			$ 8.26
017	33002811		Cabinet Upper(wht) As Pack--na	11	Appelez-nous	-
018	33002004		Clip, Fastener	11	Appelez-nous	-
019	Y313561		Screw, Relay Bracket	11			$ 5.27
019	314627		Relay Bracket	11	Appelez-nous	-
020	206824		Relay	11	Appelez-nous	-
020	306199		Relay, Heater	11			$ 42.40
020	WP3177991		Screw, Relay   (Replaces: Y251119)	11		Immediately	$ 6.47
021	213007		Screw, Cabinet	11			$ 10.99
022	W11753795		Bolt, Carriage   (Replaces: 33001991)	11			$ 6.58

    View Diagram in Separate Window       Print Part List
