| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 001 |
22003435 |
|
Commercial Base Weld Assy (Replaces: 22003926) |
11 |
|
|
$ 309.12 |
|
|
| 002 |
22003298 |
|
Retainer, Wire |
11 |
|
|
$ 7.71 |
|
|
| 003 |
Y313561 |
|
Screw, Wire Harness Clip |
11 |
|
|
$ 5.27 |
|
|
| 004 |
22004120 |
|
Clip, Wire Harness |
11 |
Appelez-nous
|
- |
|
|
|
| 005 |
22003709 |
|
Pump,drain (50hz) |
11 |
Appelez-nous
|
- |
|
|
|
| 006 |
WP8563585 |
 |
Adjustable Leg W/foot & Nut (Replaces: 22003544) |
11 |
|
Immediately |
$ 13.28 |
|
|
| 007 |
WP62739 |
 |
Nut, Leg (Replaces: Y052740) |
11 |
|
|
$ 6.85 |
|
|
| 008 |
WP210684 |
 |
Foot, Rubber (Replaces: 210684) |
11 |
|
Immediately |
$ 14.09 |
|
|
| 009 |
22002316 |
|
Strut, Rear |
11 |
Appelez-nous
|
- |
|
|
|
| 010 |
22004099 |
|
Motor Control W/filter |
11 |
Appelez-nous
|
- |
|
|
|
| 011 |
WP285655 |
 |
Clamp, Drain Hose (Replaces: 22001984) |
11 |
|
Immediately |
$ 7.55 |
|
|
| 012 |
33002190 |
|
Screw (no.10-3/8``) |
11 |
Appelez-nous
|
- |
|
|
|
| 013 |
Y313561 |
|
Screw----na |
11 |
|
|
$ 5.27 |
|
|
| 014 |
WP308605 |
|
Clip (Replaces: 22002014) |
11 |
|
|
$ 10.08 |
|
|
| 015 |
22003728 |
|
Switch, Pressure |
11 |
|
|
$ 118.47 |
|
|
| 016 |
22003298 |
|
Retainer, Wire |
11 |
|
|
$ 7.71 |
|
|
| 017 |
22002244 |
|
Clip, Grounding |
11 |
Appelez-nous
|
- |
|
|
|
| 018 |
33002190 |
|
Screw, Clip |
11 |
Appelez-nous
|
- |
|
|
|
| 019 |
22002239 |
|
Clip, Lower Front Panel |
11 |
|
|
$ 5.84 |
|
|
| 020 |
33002222 |
|
Deflector, Water (on Left Strut Only) |
11 |
Appelez-nous
|
- |
|
|
|
| 021 |
WP285655 |
|
Clamp, Hose (Replaces: 22002853) |
11 |
|
Immediately |
$ 7.55 |
|
|
| 022 |
WP285655 |
|
Clamp, Hose (Replaces: 22002853) |
11 |
|
Immediately |
$ 7.55 |
|
|
| 023 |
22003268 |
 |
Cap, Rubber |
11 |
|
|
$ 26.61 |
|
|
| 024 |
22003261 |
|
Plug, Outer Tub |
11 |
Appelez-nous
|
- |
|
|
|
| 025 |
WP285655 |
|
Clamp, Hose Double Wire (Replaces: 22003295) |
11 |
|
Immediately |
$ 7.55 |
|
|
| 026 |
22003262 |
|
Hose, Tub To Pump |
11 |
|
|
$ 27.27 |
|
|

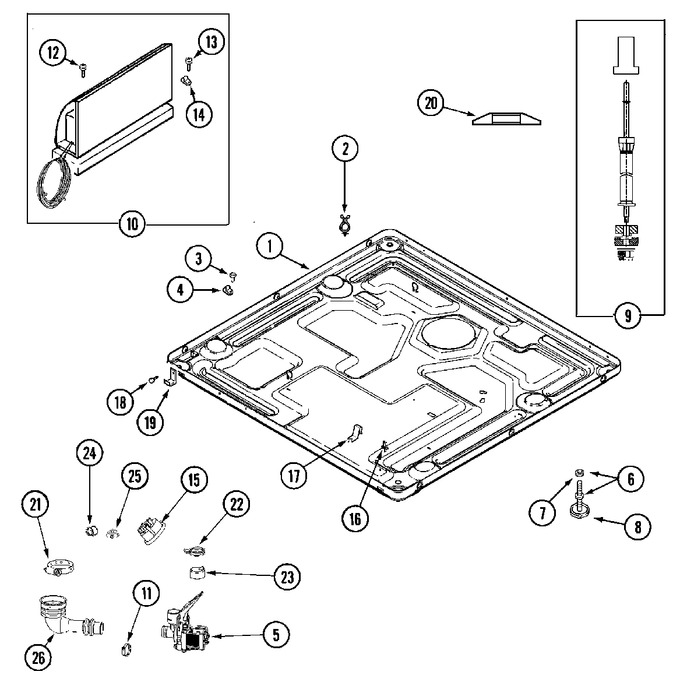

View Diagram in Separate Window
Print Part List
