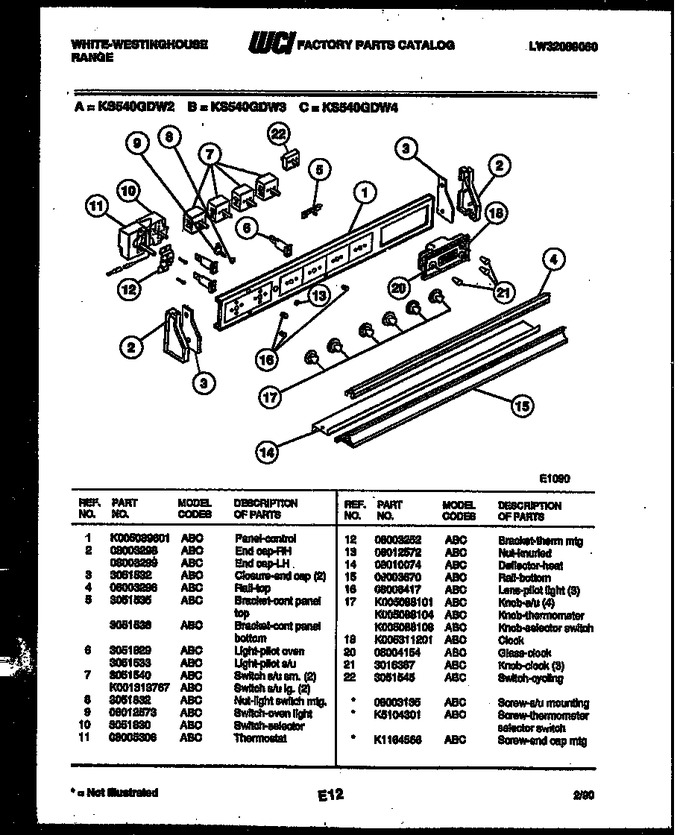

02 - Control Panel


03 - Door Parts


04 - Cooktop And Broiler Parts


05 - Drawer Parts


06 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	K005089601		Panel-control		Appelez-nous	-
2	08003298		End Cap Rh		Appelez-nous	-
3	3051532		Closure-end Cap (2)		Appelez-nous	-
4	08003296		Rail-top		Appelez-nous	-
5	3051535		Bracket-cont Panel Top		Appelez-nous	-
6	3051829		Light-pilot Oven		Appelez-nous	-
7	3051540		Switch - S/u Sm (2)		Appelez-nous	-
7	K001313767		Switch - S/u Lg (2)		Appelez-nous	-
8	3051832		Nut-light Switch Mtg.		Appelez-nous	-
9	08012573		Switch - Oven Light		Appelez-nous	-
10	3051830		Switch-selector		Appelez-nous	-
11	08005306		Thermostat		Appelez-nous	-
12	08003252		Bracket - Thermostat		Appelez-nous	-
13	08012572		Nut-knurled		Appelez-nous	-
14	08010074		Deflector-heat		Appelez-nous	-
15	08003670		Rail-bottom		Appelez-nous	-
16	08006417		Lens		Appelez-nous	-
17	K005088101		Knob-s/u (4)		Appelez-nous	-
18	K005311201		Clock		Appelez-nous	-
20	08004154		Glass-clock		Appelez-nous	-
21	3016387		Knob-clock (3)		Appelez-nous	-
22	3051545		Switch-cycling		Appelez-nous	-
*26239	K5104301		Screw-thermometer Selector Switch		Appelez-nous	-
*26239	08003135		Screw-s/u Mounting		Appelez-nous	-
*26239	K1164566		Screw-end Cap Mtg		Appelez-nous	-
17A	K005088104		Knob-thermometer		Appelez-nous	-
17B	K005088108		Knob-selector Switch		Appelez-nous	-
2A	08003299		End Cap-lh		Appelez-nous	-
5A	3051536		Bracket-cont Panel Bottom		Appelez-nous	-
6A	3051533		Light-pilot S/u		Appelez-nous	-
