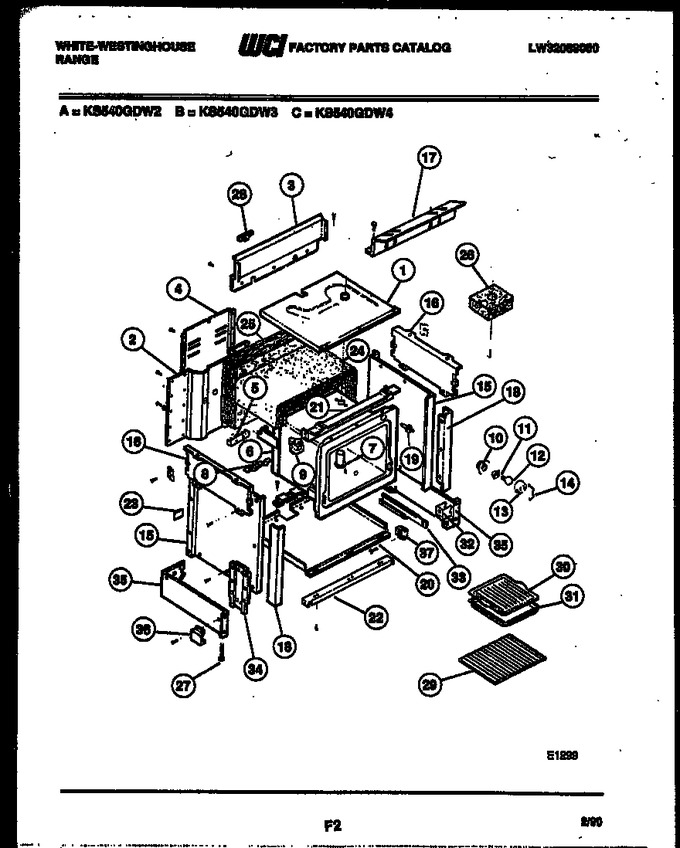

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051553 | Panel-subtop |
|
- | |||||
| 2 | 3204649 | Back, Range |
|
- | |||||
| 3 | 08008689 | Back-range Upper |
|
- | |||||
| 4 | 3204650 | Cover, Wire |
|
- | |||||
| 5 | 3051098 | Terminal-block |
|
- | |||||
| 6 | 3206193 | Liner-oven |
|
- | |||||
| 7 | 08003333 | Tube, Vent |
|
- | |||||
| 8 | 3203574 | Plate, Mounting |
|
- | |||||
| 9 | 3051552 | Bracket - Thermo Bulb |
|
- | |||||
| 10 | 3204816 | Housing, Oven Light |
|
- | |||||
| 11 | 08011085 | Receptacle - Light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 14 | 08011087 | Retainer - Lens |
|
- | |||||
| 15 | 08012226 | Retainer, Insulation (2) |
|
- | |||||
| 16 | 08015935 | Panel-side (2) |
|
- | |||||
| 17 | K5113502 | Shield, Wire |
|
- | |||||
| 18 | 3051777 | Trim, Oven Front (2) |
|
- | |||||
| 19 | 08015948 | Switch - Oven Light |
|
- | |||||
| 20 | 3205124 | Retainer, Insulation, Bottom |
|
- | |||||
| 21 | 08008693 | Bracket-cooktop |
|
- | |||||
| 22 | 08012722 | Channel, Oven |
|
- | |||||
| 23 | 3051827 | Plate, Filler (2) |
|
- | |||||
| 24 | 3051521 | Insulation Wrap |
|
- | |||||
| 25 | 3051630 | Insulation-back |
|
- | |||||
| 26 | 3051523 | Insulation, Vent Tube |
|
- | |||||
| 27 | 3205540 | Leg-levelling (4) |
|
- | |||||
| 28 | 3051800 | Bracket, Hinge Support |
|
- | |||||
| 29 | 3131973 | Rack, Oven (2) |
|
- | |||||
| 30 | 3131356 | Grill-broiler |
|
- | |||||
| 31 | 3013568 | Pan, Broiler |
|
- | |||||
| 32 | 3051653 | Spacer (2) |
|
- | |||||
| 33 | 3204818 | Rail-drawer Rh |
|
- | |||||
| 33 | 3204819 | Rail-drawer Lh |
|
- | |||||
| 34 | 3051776 | Support-front (2) |
|
- | |||||
| 35 | 3051781 | Panel-lower Side-lh |
|
- | |||||
| 36 | 08012736 | Shield-toe (2) |
|
- | |||||
| 37 | 3051654 | Glide, Front (2) |
|
- | |||||
| *26252 | 3931015 | Anti-tip Kit |
|
- | |||||
| 35A | 3051780 | Panel-lower Side-rh |
|
- |
