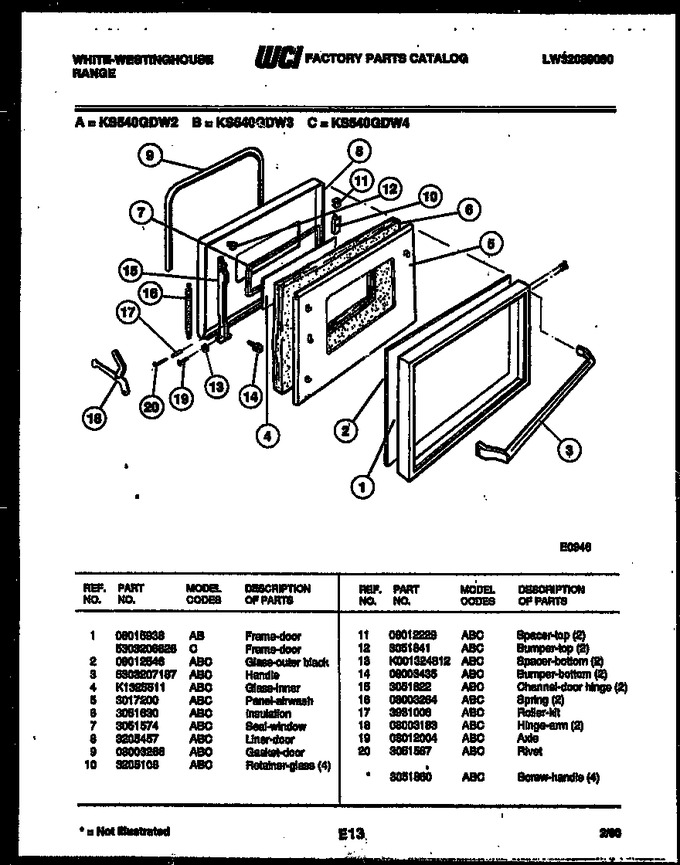

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303206826 | Frame-door |
|
- | |||||
| 2 | 08012546 | Glass-outer Black |
|
- | |||||
| 3 | 5303207187 | Handle |
|
- | |||||
| 4 | K1325511 | Glass, Inner |
|
- | |||||
| 5 | 3017200 | Panel, Airwash |
|
- | |||||
| 6 | 3051630 | Insulation |
|
- | |||||
| 7 | 3051574 | Seal Window |
|
$ 36.58 | |||||
| 8 | 3205457 | Liner-door |
|
- | |||||
| 9 | 08003268 | Gasket - Door |
|
- | |||||
| 10 | 3205108 | Retainer-glass (4) |
|
- | |||||
| 11 | 08012229 | Spacer-top (2) |
|
- | |||||
| 12 | 3051841 | Bumper-top (2) |
|
- | |||||
| 13 | K001324812 | Spacer-bottom (2) |
|
- | |||||
| 14 | 08003435 | Spacer |
|
- | |||||
| 15 | 3051822 | Channel-door Hinge (2) |
|
- | |||||
| 16 | 08003264 | Spring-oven Door |
|
- | |||||
| 17 | 3931006 | Roller-kit |
|
- | |||||
| 18 | 08003183 | Door-hinge Arm |
|
- | |||||
| 19 | 08012004 | Axle |
|
- | |||||
| 20 | 3051567 | Rivet |
|
- | |||||
| *26243 | 3051860 | Screw Handle (4) |
|
- |
