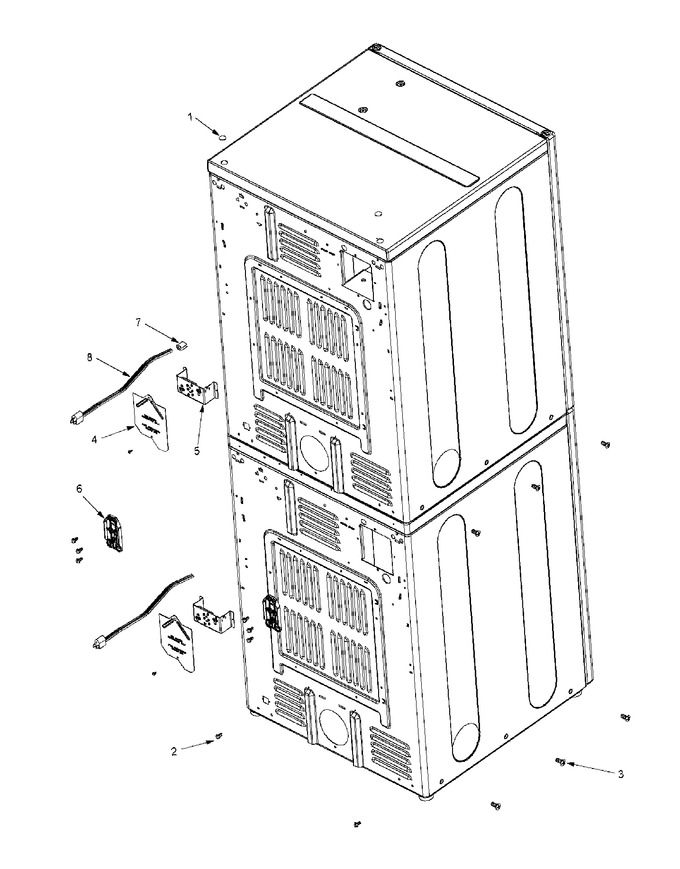

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001997		Plug, Hole	10	Appelez-nous	-
002	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
003	213007		Screw, Cabinet	10			$ 10.99
004	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
004	33001795		Cover, Terminal Block	10	Appelez-nous	-
005	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
005	W11705611		Block, Terminal   (Replaces: 33001244)	10			$ 87.34
005	NLA		Bracket, Terminal Block----na	10	Appelez-nous	-
006	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
006	33002829		Bracket, Rear Support	10	Appelez-nous	-
007	216183		Grommet, Cord Export	10	Appelez-nous	-
008	22003540		Cord, Power (export)	10	Appelez-nous	-
008	22004405		Cord Adapter Assy	10	Appelez-nous	-
