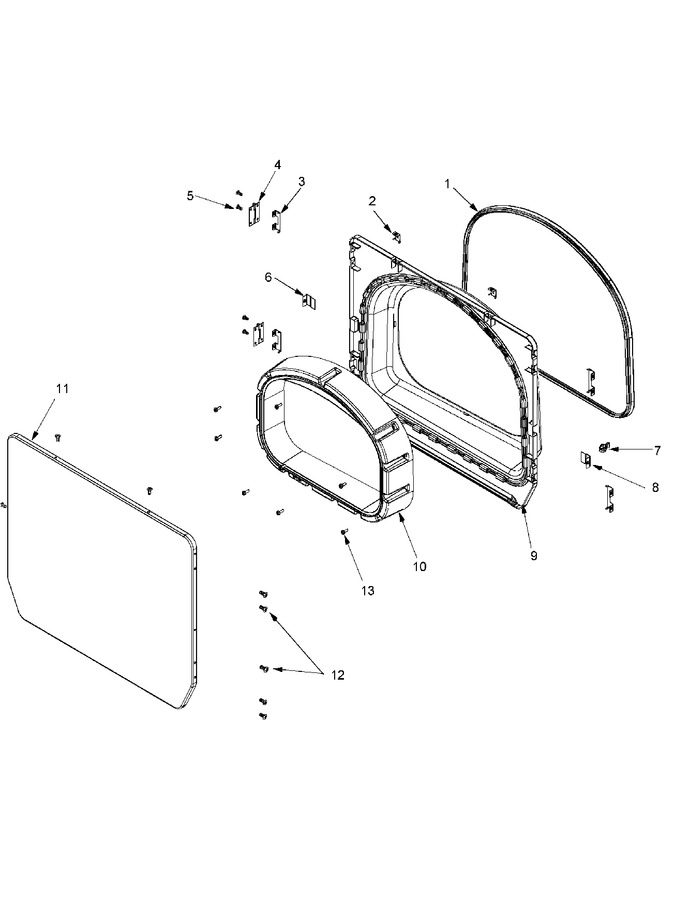

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP33002094		Seal, Door   (Replaces: 33002094)	10		Immediately	$ 113.69
002	33002607		Lens	10	Appelez-nous	-
003	22002039		Clip, Door (single)	10			$ 8.15
004	22002038		Clip, Door (double)	10	Appelez-nous	-
005	33002017		Hinge, Door	10			$ 6.58
006	33001763		Plug, Inner Door	10			$ 6.90
007	33001761		Strike, Door (male)	10			$ 5.84
008	WP33001793		Bracket, Strike   (Replaces: 33001793)	10			$ 7.43
009	33002020		Door, Inner (wht)	10			$ 128.74
010	33002780		Door Tunnel W` Handle (wht)	10			$ 58.95
011	33002887		Door, Outer W/med. As Pk Wht T	10	Appelez-nous	-
012	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
013	WP9740848		Screw   (Replaces: 22002300)	10		Immediately	$ 7.07
014	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26
