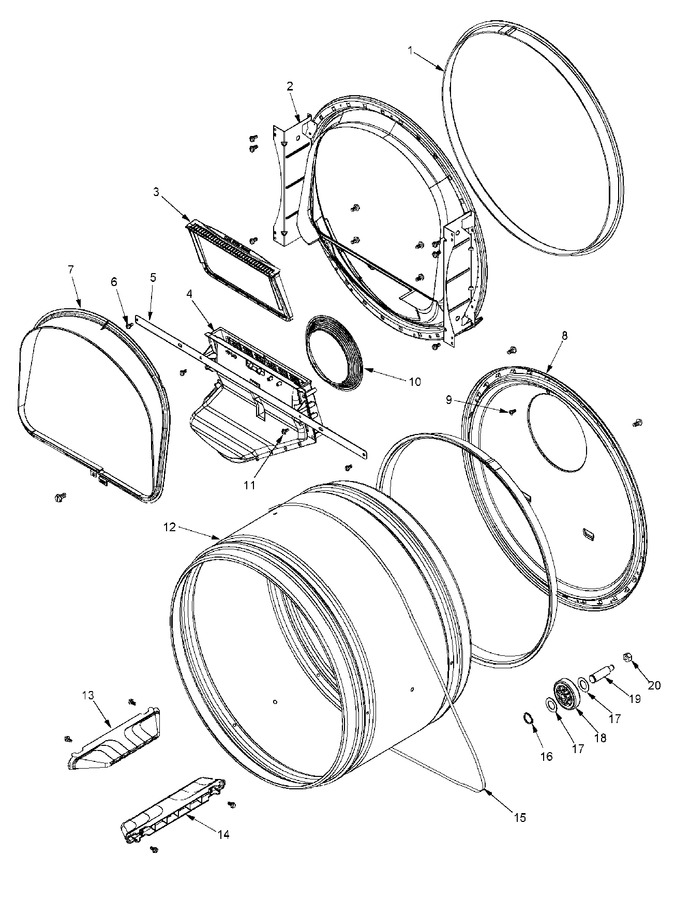

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP33001807 | Seal, Tumbler (Replaces: 33001807) | 10 |
|
Immediately | $ 21.39 | |||
| 002 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 002 | 33001802 | Front, Tumbler (w/seal) | 10 |
|
$ 134.30 | ||||
| 003 | WP33002790 | Lint Filter (Replaces: 33002790) | 10 |
|
Immediately | $ 63.23 | |||
| 004 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 004 | 33001799 | Outlet Duct Assembly | 10 |
|
$ 81.40 | ||||
| 005 | 33002039 | Brace, Tumbler Front | 10 |
|
- | ||||
| 006 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 007 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 007 | 33002026 | Extension, Tumbler Front | 10 |
|
- | ||||
| 008 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 008 | 33002779 | Tumbler Back & Seal As-pack | 10 |
|
- | ||||
| 008 | 33003037 | Tumbler Back & Seal | 17 |
|
- | ||||
| 009 | NLA | Screw----na | 10 |
|
- | ||||
| 010 | 33002560 | Seal, Blower | 10 |
|
- | ||||
| 011 | 33001768 | Screw, Shroud | 10 |
|
- | ||||
| 012 | 33001794 | Tumbler | 10 |
|
- | ||||
| 013 | WP33002032 | Baffle (tall) (Replaces: 33001756) | 10 |
|
Immediately | $ 37.95 | |||
| 013 | 33001788 | Screw, Baffle | 10 |
|
- | ||||
| 014 | WP33001755 | Baffle (short) (Replaces: 33001755) | 10 |
|
Immediately | $ 30.85 | |||
| 014 | 33001788 | Screw, Baffle | 10 |
|
- | ||||
| 015 | WP33002535 | V-belt (tumbler) (Replaces: 33002535) | 10 |
|
Immediately | $ 30.78 | |||
| 016 | WP9703438 | Ring, Retaining (Replaces: 410233) | 10 |
|
Immediately | $ 3.81 | |||
| 017 | WP312535 | Washer, Roller Shaft (Replaces: 312535) | 10 |
|
Immediately | $ 10.25 | |||
| 018 | 12001541 | Bearing & Roller Assembly (Replaces: Y303373) | 10 |
|
Immediately | $ 27.92 | |||
| 019 | Y312948 | Shaft, Tumbler Roller----c | 10 |
|
- | ||||
| 020 | WP33001443 | Nut, Hex (roller Shaft) (Replaces: 33001443) | 10 |
|
$ 7.15 |
