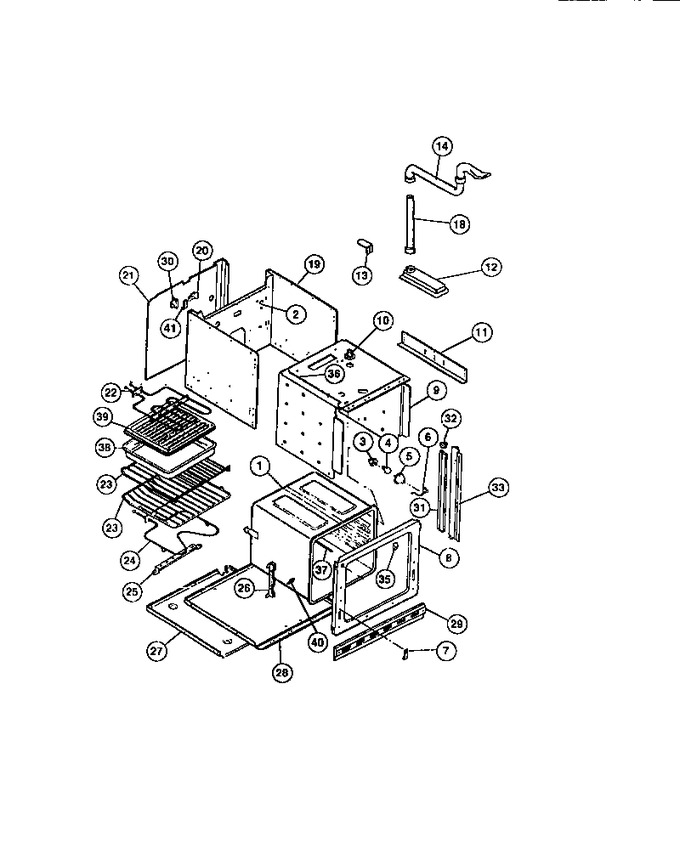

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272462 | Liner-oven |
|
- | |||||
| 2 | 3204594 | Switch-thermal |
|
- | |||||
| 3 | 316116400 | Receptacle (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 4 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 5 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 6 | 3204483 | Retainer-lens |
|
- | |||||
| 7 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 8 | 3202076 | Frame - Front |
|
- | |||||
| 9 | 3016272 | Shield - Wool |
|
- | |||||
| 10 | 3205683 | Tube-oven Vent |
|
- | |||||
| 11 | 3016278 | Support, Height Adjustment |
|
- | |||||
| 12 | 3016324 | Duct-oven Vent |
|
- | |||||
| 13 | 3016326 | Bracket-oven Vent |
|
- | |||||
| 14 | 5303206735 | Duct-oven Vent Pipe |
|
- | |||||
| 18 | 3019056 | Duct-oven Vent Center |
|
- | |||||
| 19 | 3016275 | Wrapper |
|
- | |||||
| 20 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 21 | 3019061 | Cover-rear |
|
- | |||||
| 22 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 23 | 5303016315 | Rack - Regular |
|
- | |||||
| 23 | 5304531722 | Rack - Off Set (Replaces: 3016282) |
|
Immediately | $ 51.05 | ||||
| 24 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 25 | 3016248 | Support, Broil Element |
|
- | |||||
| 26 | 3201631 | Hinge Assembly (2) |
|
$ 58.22 | |||||
| 27 | 3016277 | Wrapper, Base |
|
- | |||||
| 28 | 3016273 | Shield-insulation Base |
|
- | |||||
| 29 | 5303016283 | Trim-base |
|
- | |||||
| 30 | 3202452 | Switch-oven Light |
|
- | |||||
| 31 | 3019049 | Trim, Liner, Right Hand |
|
- | |||||
| 31 | 3019050 | Trim, Liner, Left Hand |
|
- | |||||
| 32 | 3202180 | Trim, Cap, Left Hand |
|
- | |||||
| 32 | 3202179 | Trim, Cap, Right Hand |
|
- | |||||
| 33 | 5303206736 | Trim-side Outer (2) |
|
- | |||||
| 35 | 3202082 | Cover Seam |
|
- | |||||
| 35 | 3019048 | Insulation - Wrap (non-illustrated) |
|
- | |||||
| 35 | 3016274 | Insulation - Back (non-illustrated) |
|
- | |||||
| 36 | 3202077 | Rod-switch |
|
- | |||||
| 37 | 5303208888 | Probe-sensor |
|
- | |||||
| 38 | 3205539 | Pan, Broiler |
|
- | |||||
| 39 | 3205234 | Insert-broiler |
|
- | |||||
| 40 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 41 | 3202384 | Bracket-switch Mounting |
|
- | |||||
| *10240 | 191S030P02 | Wiring Diagram-(not For Purchase) |
|
- | |||||
| *10241 | 191S018F301 | Wiring Diagram-(not For Purchase) |
|
- |
