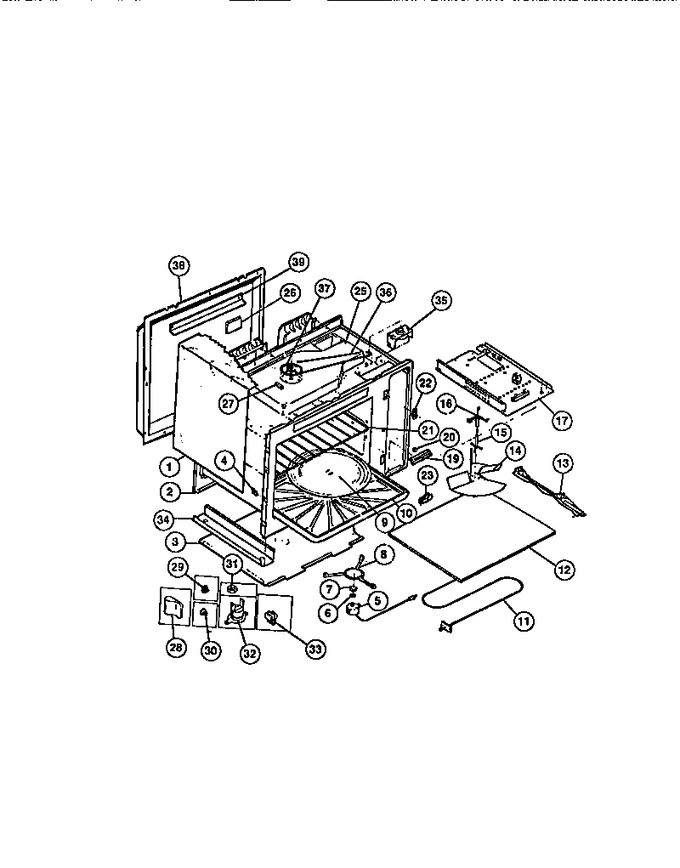

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303203194 | Wrapper, Top And Sides |
|
- | |||||
| 3 | 3014060 | Shield-oven Bottom |
|
- | |||||
| 4 | 3203010 | Fastener, Hinge Clips (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 5 | 5303922046 | Motor-turntable |
|
- | |||||
| 6 | 5303014620 | Washer-stirrer |
|
- | |||||
| 7 | 5303922044 | Bushing-motor |
|
$ 78.33 | |||||
| 8 | 5303091004 | Support-roller Assembly |
|
- | |||||
| 9 | 5308037674 | Tray-oven (circular) |
|
- | |||||
| 10 | 5303011698 | Tray, Oven |
|
- | |||||
| 11 | 5303012207 | Element - Browner |
|
- | |||||
| 12 | 5303012681 | Glass - Stirrer Cover |
|
- | |||||
| 13 | 5303011777 | Channel Support Rh |
|
- | |||||
| 13 | 5303011776 | Channel Support Lh |
|
- | |||||
| 14 | 5308037708 | Fan Stirrer |
|
- | |||||
| 15 | 5303202875 | Support-stirrer |
|
- | |||||
| 16 | 5303011826 | Collar-stirrer |
|
- | |||||
| 17 | 5303210624 | Channel-base-rh |
|
- | |||||
| 19 | 5303011555 | Bracket-control-mounting-lower |
|
- | |||||
| 20 | 5308037644 | Grommet-door |
|
- | |||||
| 21 | 5303206085 | Rack-oven |
|
- | |||||
| 22 | 5303200551 | Bezel-latch (2) |
|
- | |||||
| 23 | 5303018581 | Spacer-rack (4) |
|
- | |||||
| 25 | 5303011667 | Duct-air (foam) |
|
- | |||||
| 26 | 3091338 | Cover Light Access |
|
- | |||||
| 27 | 5308014510 | Spacer - Wrapper |
|
- | |||||
| 28 | 5303012322 | Fastener-wrapper Clip (2) |
|
- | |||||
| 29 | 5303201365 | Plug-button (probe) |
|
- | |||||
| 30 | 5308037665 | Plug-button Tray (2) |
|
- | |||||
| 31 | 5303131215 | Fastener, Twist Nut, Channel Support, Left And Right (4) |
|
- | |||||
| 32 | 5303202107 | Switch-thermo Cutout |
|
- | |||||
| 33 | 5303014221 | Support Rack (8) |
|
- | |||||
| 34 | 5303011773 | Channel Base, Lh |
|
- | |||||
| 35 | 5303206759 | Motor-stirrer |
|
- | |||||
| 36 | 5303011495 | Belt-stirrer |
|
$ 23.31 | |||||
| 37 | 5303013647 | Pulley-stirrer |
|
- | |||||
| 38 | 5303203692 | Shield-rear Wall |
|
- | |||||
| 39 | 3091058 | Angle-air Baffle |
|
- | |||||
| *10248 | 5308037640 | Duct Air Foam |
|
- | |||||
| *10249 | 5303011685 | Shield, Oven Lite, Mylar |
|
- | |||||
| *10250 | 5303018849 | Label-cook, Guide |
|
- |
