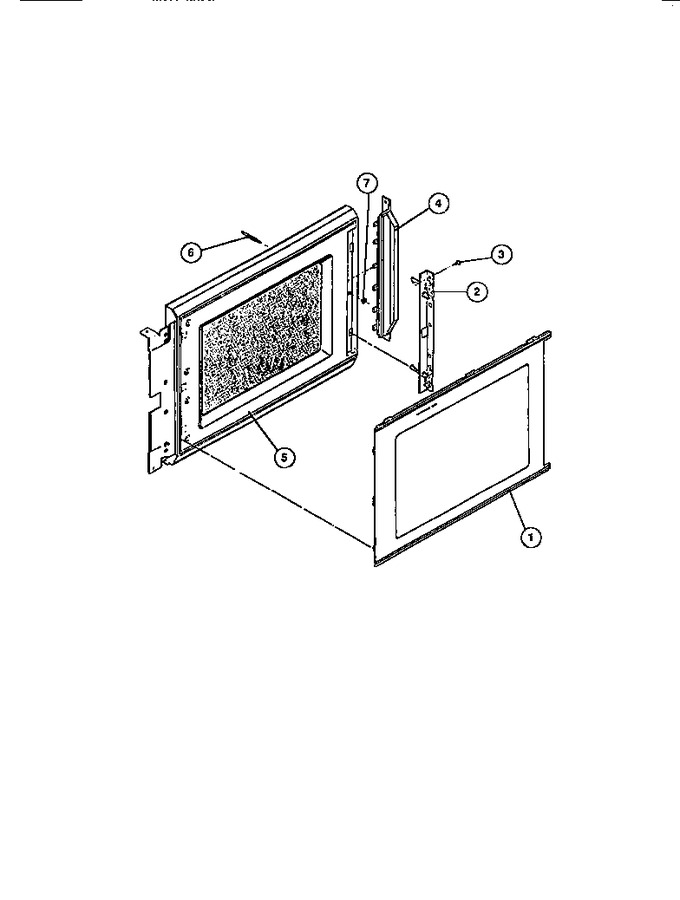

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303016161 | Cover-door |
|
- | |||||
| 2 | 5303207449 | Angle, Hook Assembly |
|
- | |||||
| 3 | 5303013960 | Screw (2) |
|
- | |||||
| 4 | 5308037645 | Handle |
|
- | |||||
| 5 | 5303211410 | Door-complete |
|
- | |||||
| 6 | 5303013962 | Screw-door Strike |
|
- | |||||
| 7 | 5303013273 | Hex Nut-strike |
|
- |
