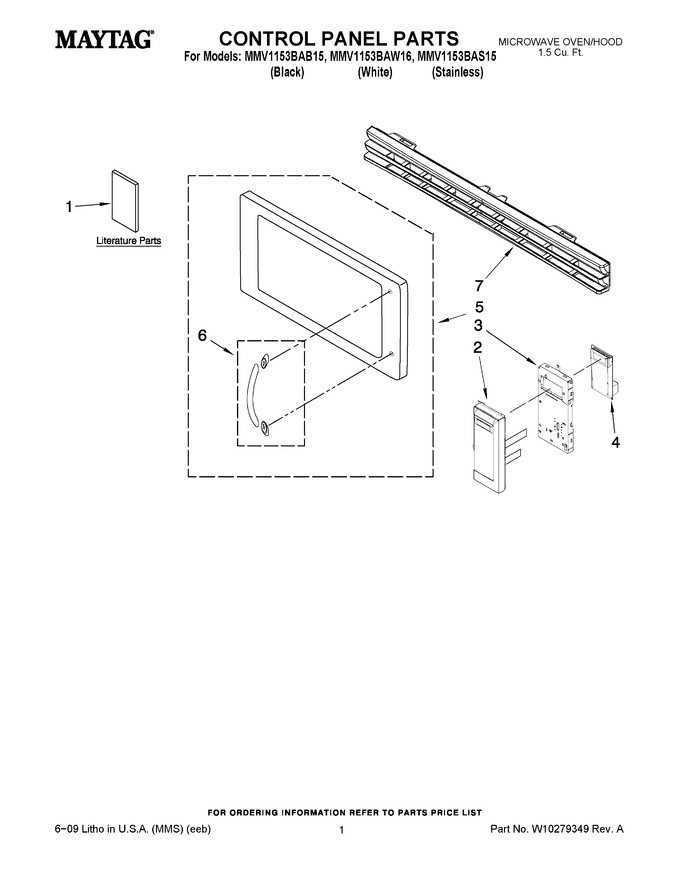

01 - Control Panel Parts
02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10177920 | U & C Guide |
|
- | |||||
| 1 | W10182258 | Tech Sheet, Slim |
|
- | |||||
| 2 | DE94-01354E | Panel Asy, Control Membrane, Lens And Bracket (black) |
|
- | |||||
| 2 | DE94-01354F | Panel Asy, Control Membrane, Lens And Bracket (white) |
|
- | |||||
| 2 | DE94-01354H | Panel Asy, Control Membrane, Lens And Bracket (stainless) |
|
$ 125.51 | |||||
| 3 | DE97-00600B | Bracket, Control |
|
- | |||||
| 4 | W10182256 | Microcomputer |
|
- | |||||
| 5 | W10280778 | Complete Door (black) |
|
- | |||||
| 5 | W10280780 | Complete Door (white) |
|
- | |||||
| 5 | W10280781 | Complete Door (stainless) |
|
- | |||||
| 6 | W10279351 | Handle, Door (black) |
|
- | |||||
| 6 | W10279353 | Handle, Door (white) |
|
- | |||||
| 7 | DE64-01453B | Grille Assembly (white) |
|
$ 112.44 | |||||
| 7 | DE64-01453A | Grille Assembly (stainless) |
|
$ 106.51 |
