01 - Control Panel Parts

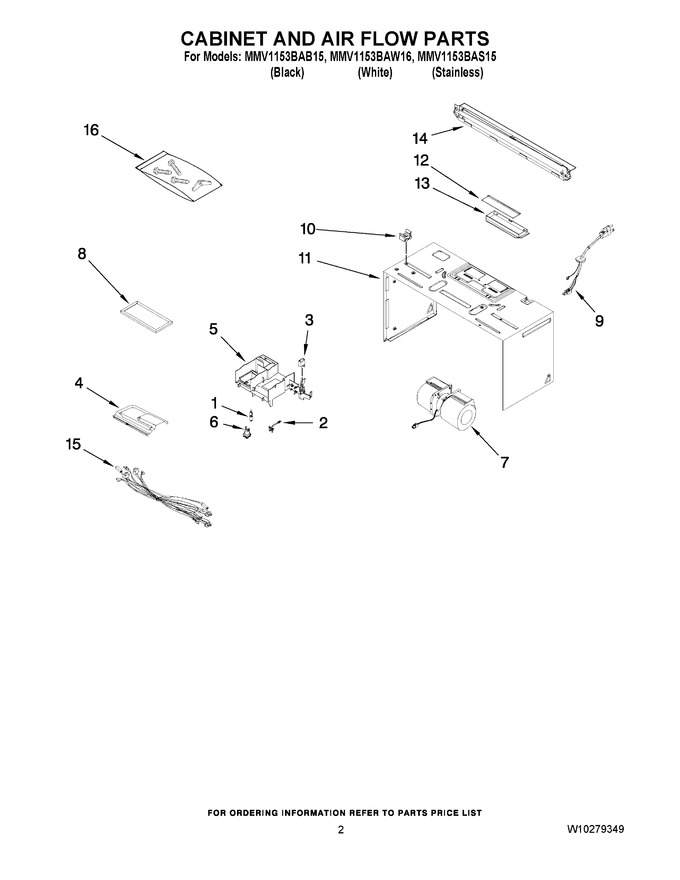

02 - Cabinet And Air Flow Parts
03 - Interior And Ventilation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4713-001013 | Lamp |
|
Immediately | $ 18.00 | ||||
| 2 | DE47-00006A | Holder-lamp |
|
$ 17.58 | |||||
| 3 | DE59-50002A | Capacitor-motor |
|
Immediately | $ 27.34 | ||||
| 4 | W10254313 | Bracket, Duct (u) |
|
- | |||||
| 5 | W10280436 | Assy, Duct Upper |
|
- | |||||
| 6 | 555555 | Thermostat (Replaces: DE47-20059A) |
|
$ 151.94 | |||||
| 7 | W10182257 | Motor, Fan Assy |
|
$ 38.66 | |||||
| 8 | 555555 | Filter-charcoal (Replaces: DE63-00367E) |
|
$ 151.94 | |||||
| 9 | DE96-00218A | Cord, Power |
|
$ 78.75 | |||||
| 10 | DE92-90508A | Holder Nut, Assy |
|
Immediately | $ 17.58 | ||||
| 11 | W10254670 | Case, Outer (white) |
|
- | |||||
| 11 | W10254195 | Case, Outer (black) |
|
- | |||||
| 12 | W10197773 | Damper, Assembly |
|
$ 29.38 | |||||
| 13 | DE72-40022A | Plate, Damper |
|
Immediately | $ 12.07 | ||||
| 14 | W10261295 | Plate, Mounting |
|
$ 45.41 | |||||
| 15 | W10279356 | Main Harness |
|
- | |||||
| 16 | DE92-90505G | Install, Hardware |
|
$ 29.82 | |||||
| NI | W10197644 | Template, Wall |
|
- | |||||
| NI | DE68-03144B | Template, Top |
|
- |
