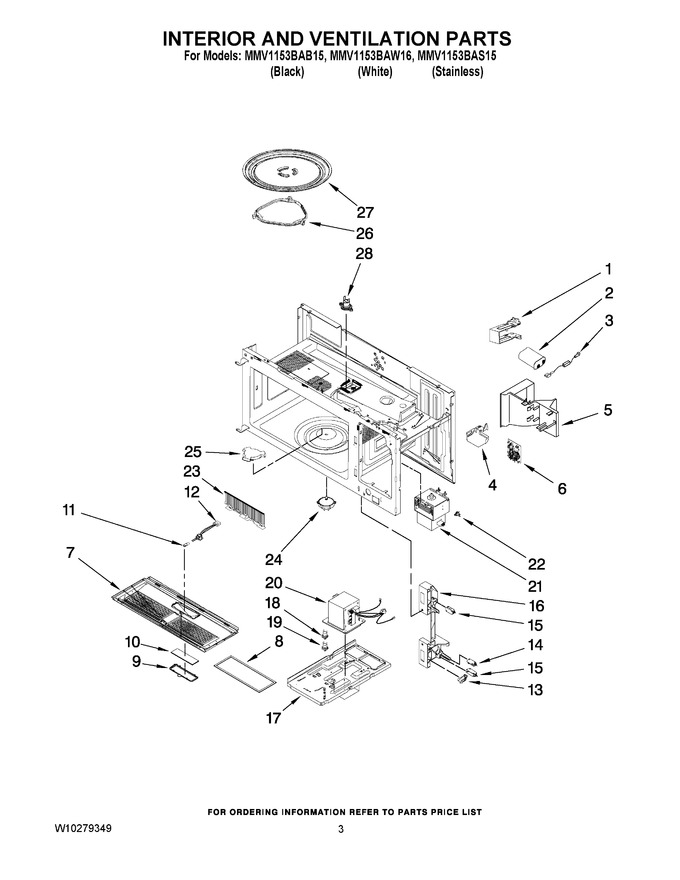

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DE61-00521A		Bracket, Capacitor				$ 2.94
2	2501-001035		Capacitor			Immediately	$ 101.91
3	DE59-00002A		Diode, H.v.			Immediately	$ 20.62
4	W10254312		Blade, Fan		Appelez-nous	-
5	DE61-00753A		Guide, Suction		Appelez-nous	-
6	DE96-00400A		Filter, Noise				$ 84.88
7	W10258365		Plate, Bottom (white)		Appelez-nous	-
7	W10254197		Plate, Bottom (black)		Appelez-nous	-
8	DE63-00196A		Air, Filter			Immediately	$ 14.77
9	555555		Holder, Glass (black)   (Replaces: DE63-00100B)				$ 151.94
9	DE63-00100C		Holder, Glass (white)				$ 15.35
10	DE67-40063A		Glass, Lamp			Immediately	$ 18.00
11	4713-001013		Lamp, Halogen			Immediately	$ 18.00
12	DE47-00006A		Holder-lamp				$ 17.58
13	DE66-90106B		Lever, Switch				$ 17.58
14	3405-001033		Switch-micro			Immediately	$ 17.58
15	3405-001034		Switch, Micro			Immediately	$ 14.85
16	DE66-00168A		Latch Board			Immediately	$ 18.65
17	W10280438		Plate, Base		Appelez-nous	-
18	DE47-20034A		Sw-thermo			Immediately	$ 20.09
19	555555		Thermostat (2)   (Replaces: DE47-20059A)				$ 151.94
20	W10261283		Transformer, H.v.		Appelez-nous	-
21	WPW10126786		Magnetron   (Replaces: W10126786)				$ 312.35
22	555555		Thermostat   (Replaces: DE47-20007A)				$ 151.94
23	DE63-00328A		Cover-front		Appelez-nous	-
24	DE31-10104D		Motor, Turntable				$ 36.51
25	DE67-00180A		Coupler, Glider				$ 6.95
26	DE97-00192C		Guide, Tray				$ 43.17
27	DE74-20015G		Tray, Cooking				$ 86.37
28	555555		Thermostat   (Replaces: DE47-20196A)				$ 151.94
