Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3351130 Panel, Control Appelez-nous -
5 3351134 Insert Appelez-nous -
8 3351137 Timer Appelez-nous -
9 3351040 Screw Appelez-nous -
10 3351138 Knob, Timer Appelez-nous -
13 3351139 Pushbtn (9) Appelez-nous -
17 3351143 Switch Appelez-nous -
19 3351145 Retainer Appelez-nous -
20 3351146 Light, Pilot Appelez-nous -
21 3351147 Light, Pilot Appelez-nous -
22 3351148 Lens Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

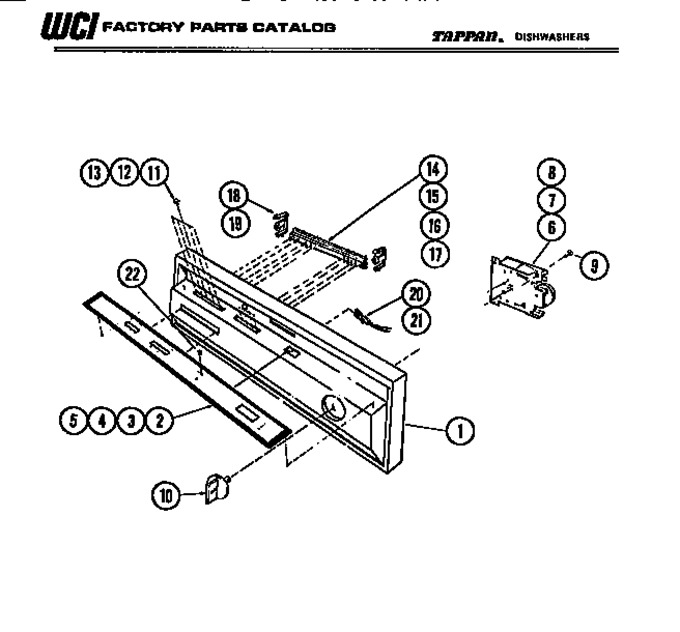

Diagram for 61-1157-10-00
