New Model Search:

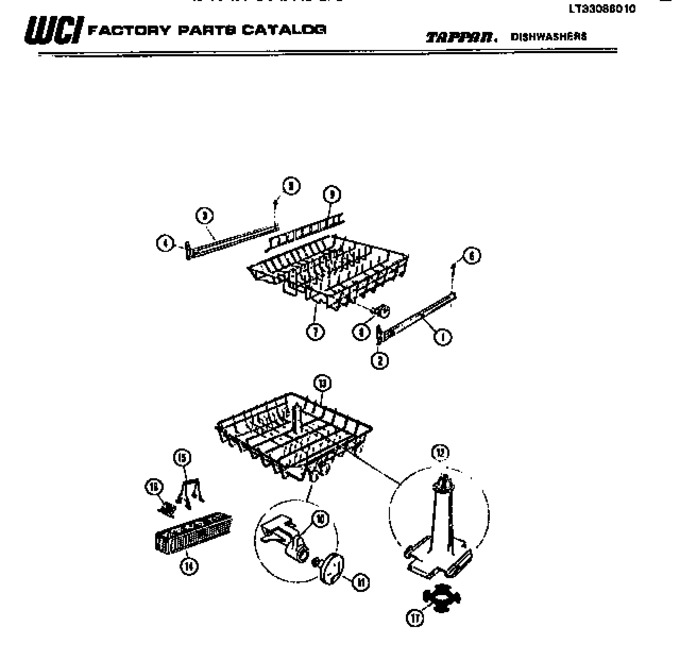

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3351170 | Guide, W/cap |
|
- | |||||
| 2 | 3351171 | Cap Rh |
|
- | |||||
| 3 | 3351172 | Guide, W/cap |
|
- | |||||
| 4 | 3351173 | Cap Lh |
|
- | |||||
| 5 | 3351174 | Pin |
|
- | |||||
| 6 | 3351174 | Pin |
|
- | |||||
| 7 | 3351175 | Rack, Upper |
|
- | |||||
| 8 | 3351176 | Roller |
|
- | |||||
| 9 | 3351177 | Shelf, Cup |
|
- | |||||
| 10 | 3351178 | Support (8) |
|
- | |||||
| 11 | 3351179 | Wheel (8) |
|
- | |||||
| 12 | 3351180 | Tower |
|
- | |||||
| 13 | 3351181 | Rack, Lwr. |
|
- | |||||
| 14 | 5304509753 | Basket, White (Replaces: 3351194) |
|
Immediately | $ 36.87 | ||||
| 15 | 3351195 | Handle, White |
|
- | |||||
| 16 | 3351196 | Cover, White |
|
- | |||||
| 17 | 3351197 | Gasket |
|
- |
